| Housing | Anodised aluminium & stainless steel |
| Image sensor / number of effective pixels | CMOS / 2130k pixelsv |
| Output Pixel (HxV) | 1920x1080 |
| Signalsysestem | 1080i/60 |
| Minimum illuminance | 0.01 lx |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focus | Automatic or manual |
| Viewpoint | --- |
| Minimum object distance | --- |
| Video output | Y/Pb/Pr |
| Range - PAN | 20° (± 10°) / can be adjusted on customer request |
| Range - TILT | 90° (± 45°) / can be adjusted on customer request |
| Lighting | N/a |
| Luminous flux | --- |
| Dimensions (LxBxø) | 382x232x205 mm |
| Weight | 30 kg |
| Operating temperature | --- |
| Waterproof / Water depth | 5 bar / 50 m |
| Radiation tolerance | 17,200 rad/h (172 Gy/h) |
| Total dose | 530,000 rad (5,300 Gy) |
| Accessories (optional) | --- |
| Features | Integrated detent coupling for PAN & TILT |
Inspection cameras

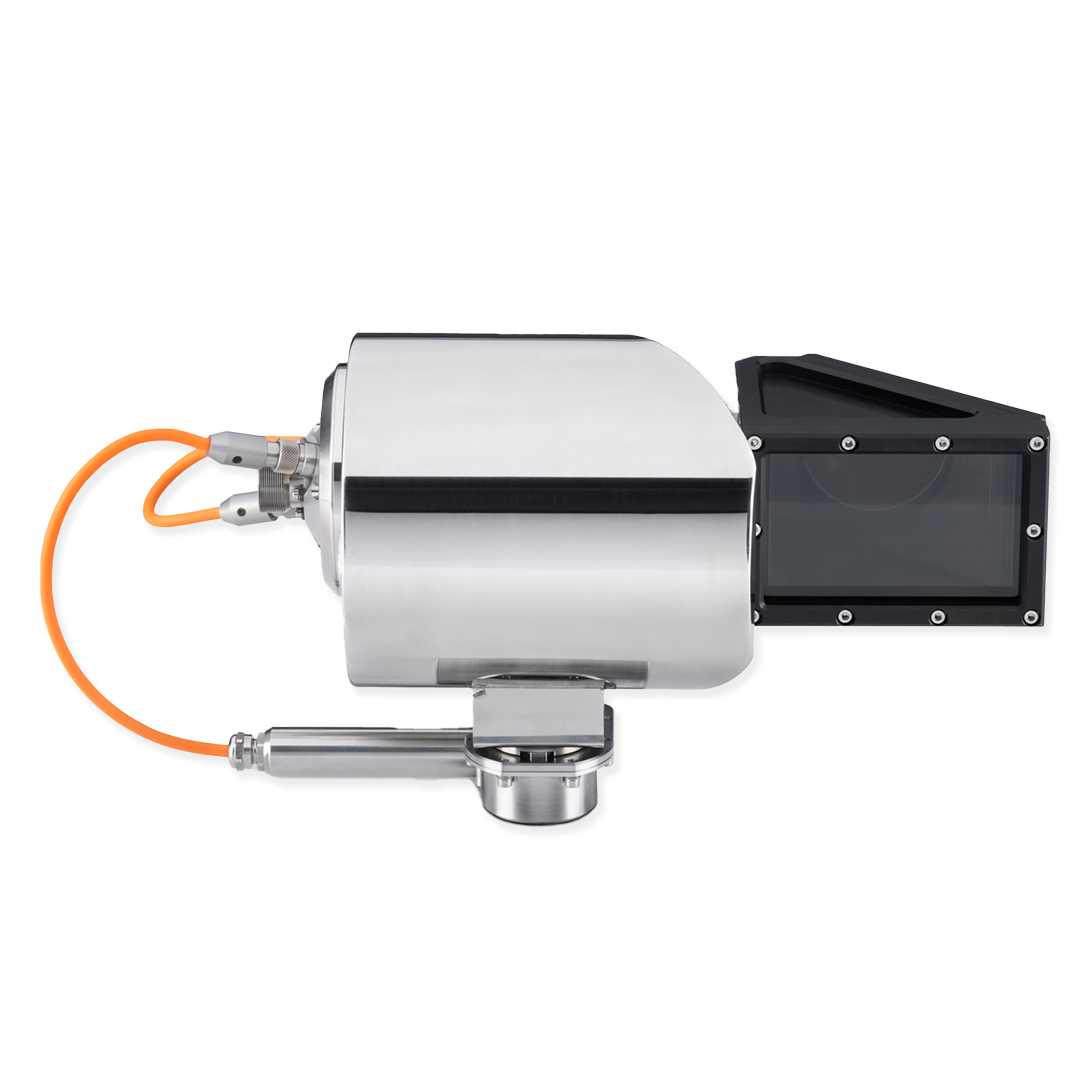

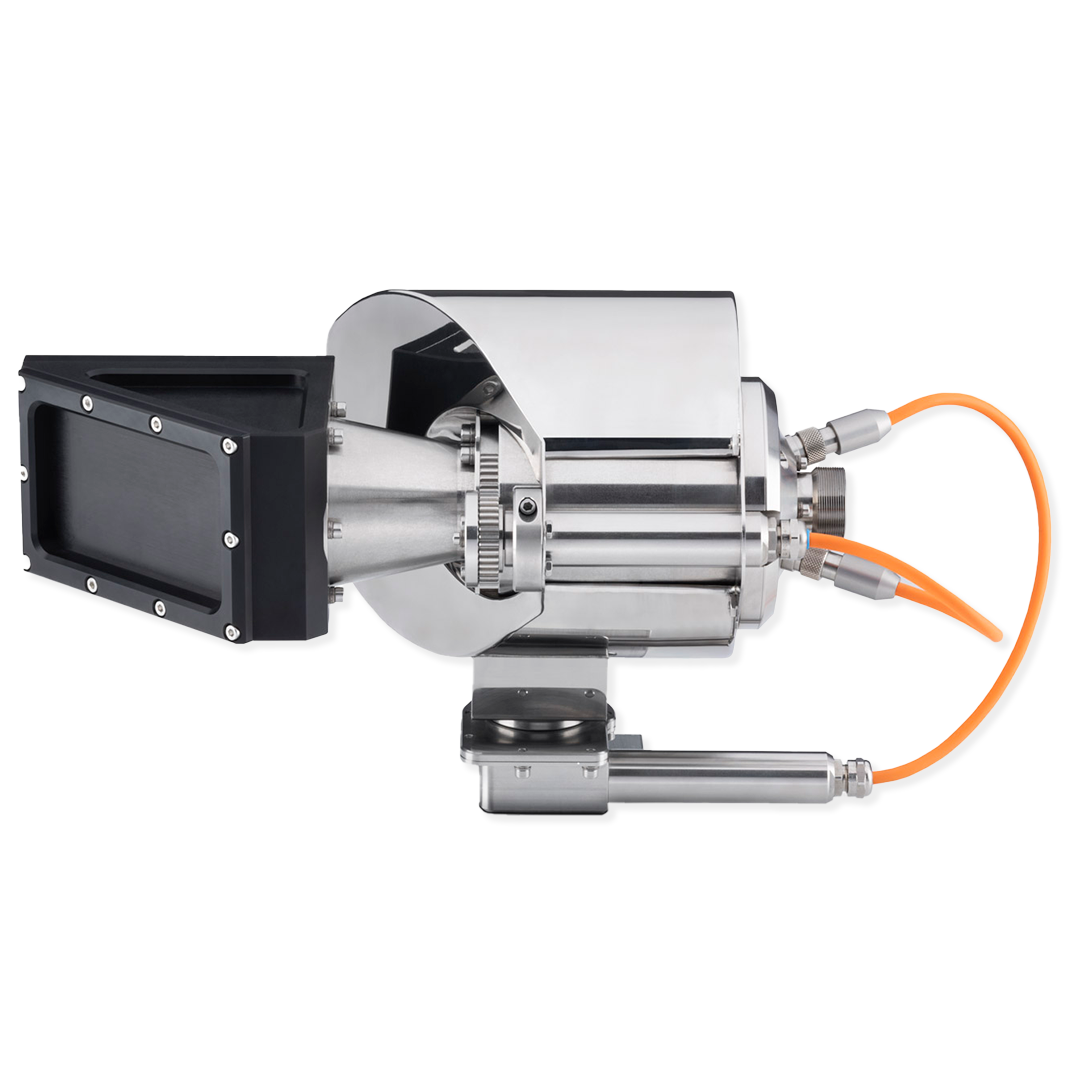

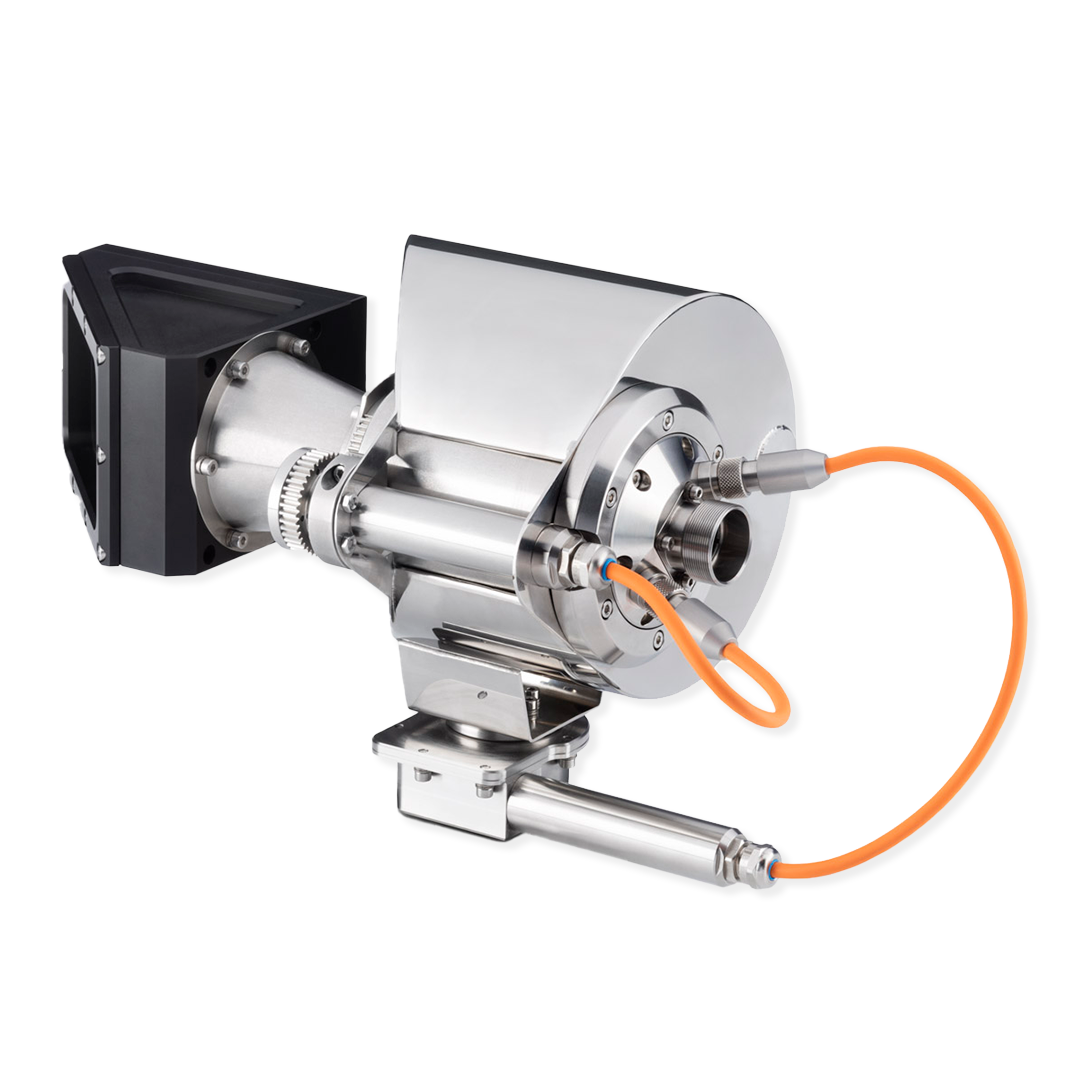

VT 1780 PTZC HD
Highly radiation-resistant camera for the nuclear sector, with robust lead housing
- High quality and reliability through Full HD resolution with 30x optical zoom and pan-tilt function
- Extensively applicable, due to the robust and waterproof housing as well as the radiation-resistant electronics
Product overview
Are you looking for a robust inspection camera for use in nuclear environments? Our waterproof and highly radiation-resistant inspection camera offers the optimal solution: thanks to its resistant lead housing, it is the ideal companion for inspection in dark and hard-to-reach places.
Key features
- Robust construction made of anodised aluminium and stainless steel
- PAN & TILT with snap-in coupling
- High radiation resistance
- Zoom lens 30x optical / 12x digital
- 1080i/60 fps Full HD resolution
- Waterproof up to 50 m
Documents
Areas of application
Inspections and monitoring applications in hard-to-reach areas
Nuclear applications - e.g. fuel element inspection
