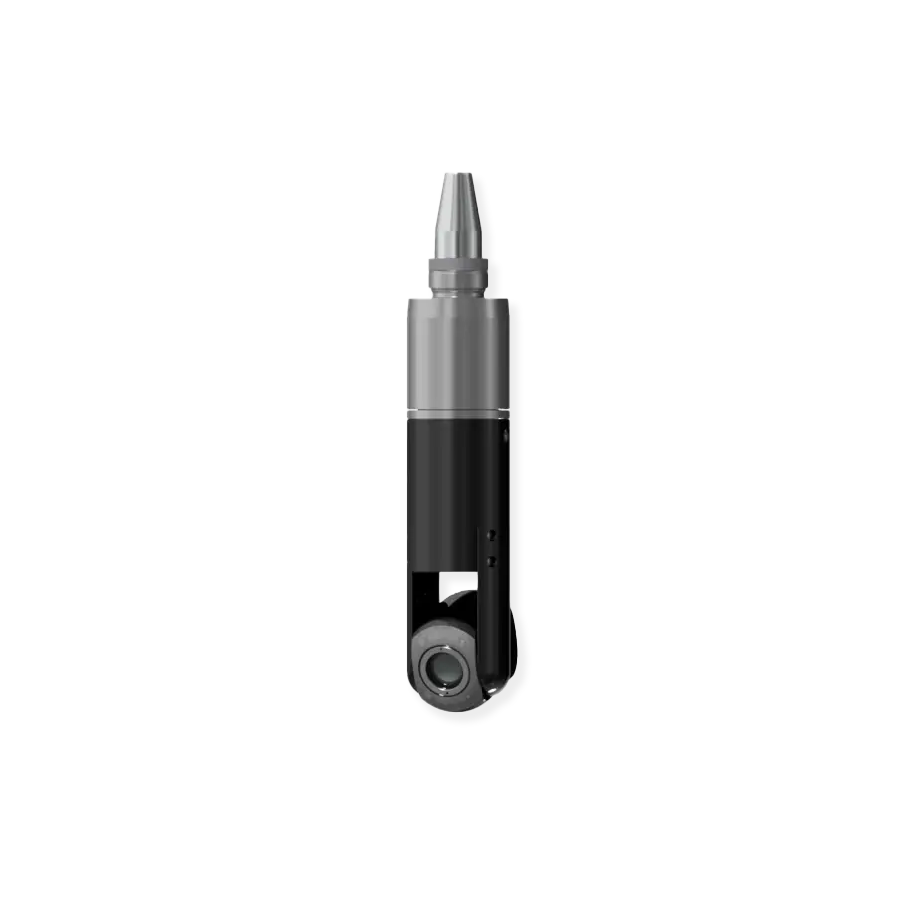

VT 60 PTZC HD

Inspection cameras

Compact inspection camera for a wide range of applications

Do you need an inspection camera that, in addition to the best possible image results, also offers you a wide range of application and mounting options? Then our waterproof HD inspection camera is the optimal solution: Its compact dimensions allow it to be mounted on ROVs, crawlers and other manipulators.

Product overview
Technical specifications
Documents
Areas of application
Related products

01 0060 01 000 01 Vt 60 Ptzc Hd 216Zu9 1080X1080

01 0060 01 000 01 Vt 60 Ptzc Hd 416Zu9 924X924

Product overview

High image quality thanks to 10x optical zoom and pan-tilt function
Extensive application possibilities, due to the mountability on a wide range of manipulators
Self-sufficient inspections even in dark environments due to the built-in LED illumination

Key features

Robust construction made of anodised aluminium and stainless steel
PAN & TILT with snap-in coupling
Radiation tolerant
Zoom lens 10x optical / 16x digital
1080i/60 fps Full HD resolution
Integrated LED lighting
Waterproof up to 50 m

Housing	Anodised aluminium & stainless steel
Image sensor / number of effective pixels	1/3" CMOS
Output Pixiel (HxV)	1920x1080
Signalsystem	1080i/60
Minimum illuminance	0.5 lx
Optical zoom	10x
Digital zoom	16x
Focus	Automatic or manual
Viewpoint	58.2° (wide) to 6.9° (tele)
Minimum object distance	10 mm (wide) to 800 mm (tele)
Video output	Y/Pb/Pr
Range - PAN	Infinite
Range - TILT	314° (± 157°)
Lighting	4 W
Luminous flux	---
Dimensions (ø x L)	60x230 mm
Weight	31,5 kg
Operating temperature	---
Waterproof / Water depth	5 bar / 50 m
Radiation tolerance	---
Total dose	---
Accessories (optional)	---
Features	Integrated detent coupling for PAN & TILT
