| Housing | Anodised aluminium |
| Image sensor / number of effective pixels | CMOS / 2130k pixels |
| Output Pixel (HxV) | 1920x1080 |
| Signalsysestem | 1080i/60 |
| Minimum illuminance | 0.01 lx |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focus | Automatic or manual |
| Viewpoint | 63.7° (wide) to 2.3° (tele) |
| Minimum object distance | 10 mm (wide) to 1200 mm (tele) |
| Video output | Y/Pb/Pr |
| Range - PAN | Infinite |
| Range - TILT | 220° (± 110°) |
| Lighting | 4x LED spots |
| Luminous flux | ~ 6,000 lm |
| Dimensions (LxBxø) | 246.5x117x129 mm |
| Weight | 3.5 kg |
| Operating temperature | --- |
| Waterproof / Water depth | 5 bar / 50 m |
| Radiation tolerance | 7,000 rad/h (70 Gy/h) |
| Total dose | 42,000 rad (420 Gy) |
| Accessories (optional) | Laser module for measurement applications |
| Features | Integrated snap-in coupling for PAN & TIL |
Inspection cameras

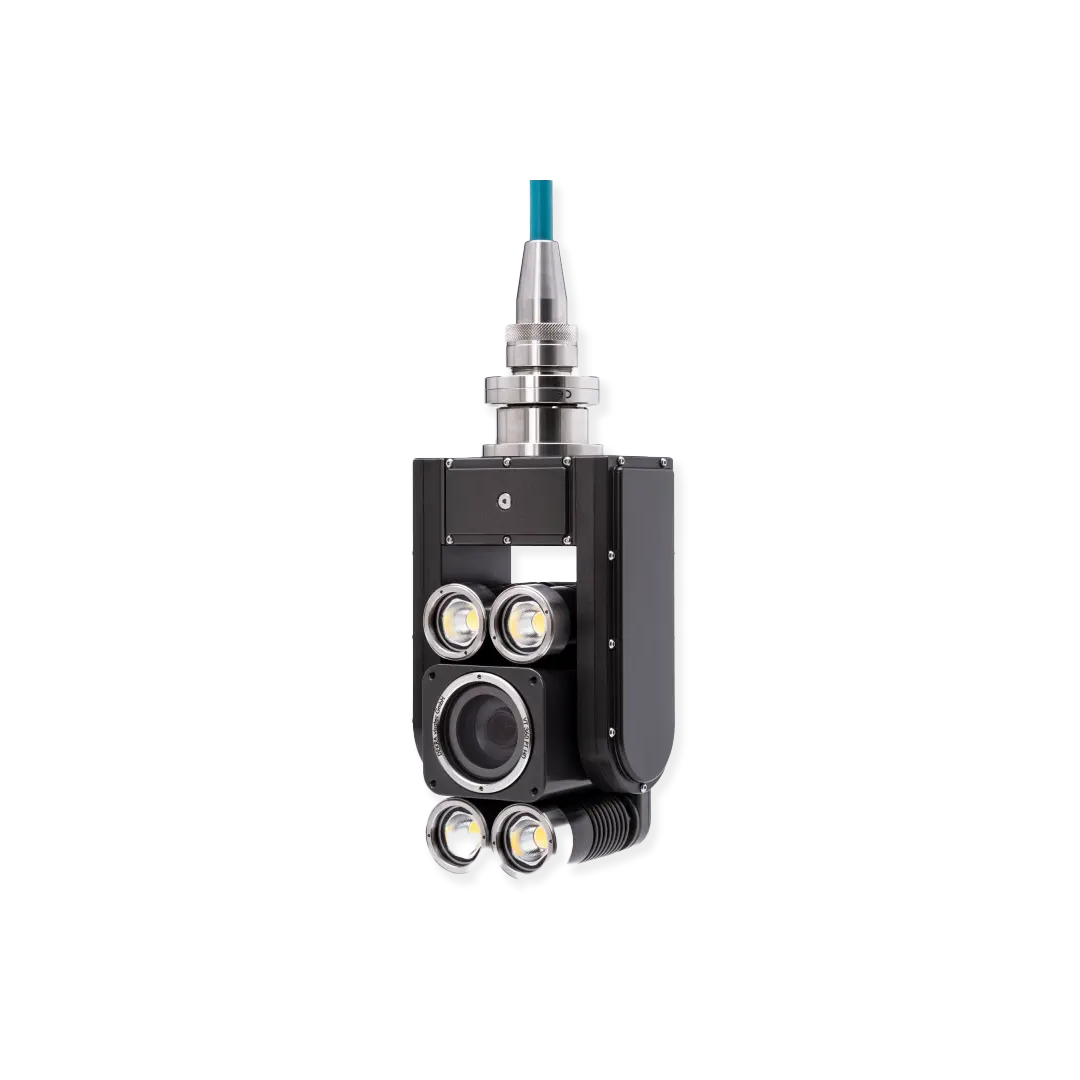

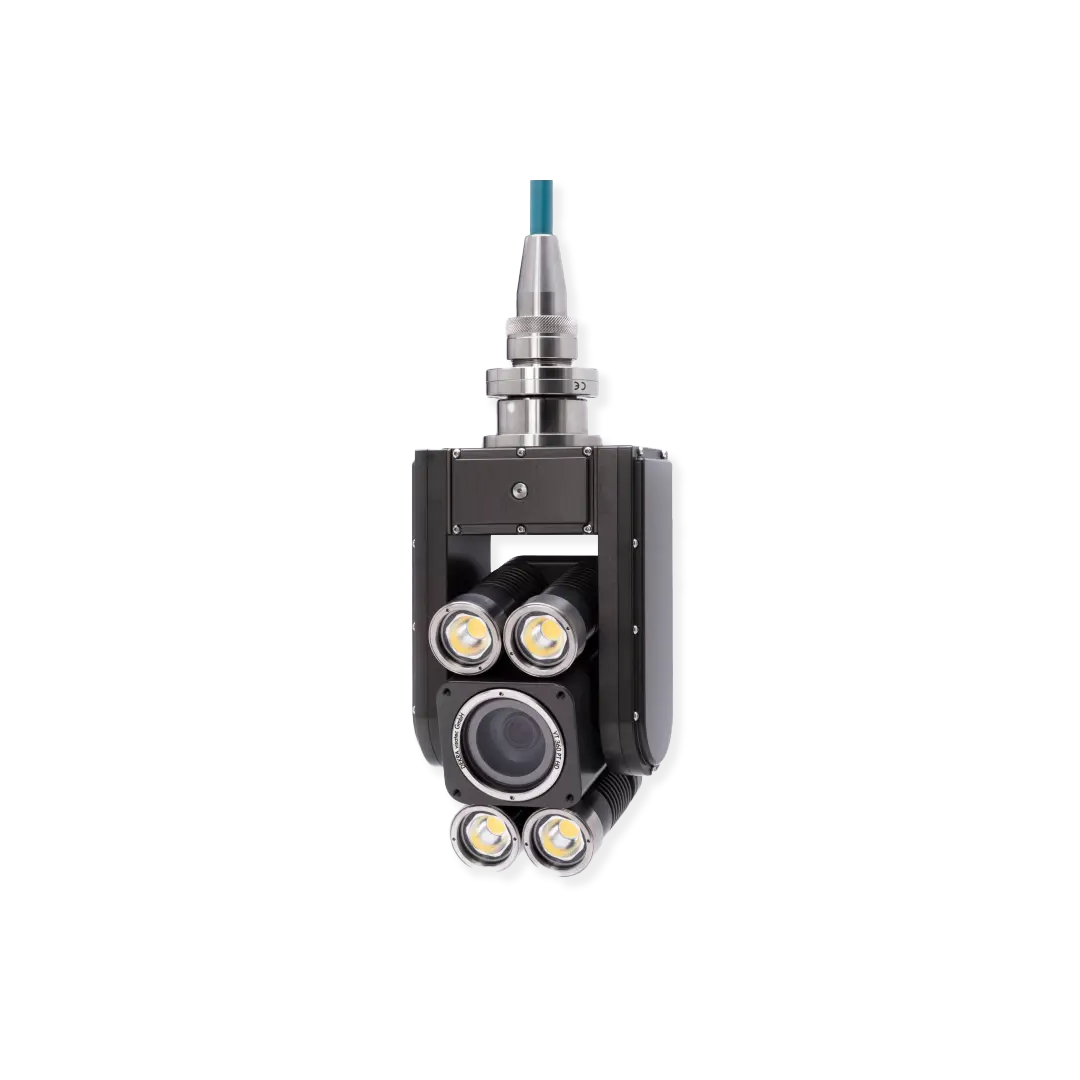

VT 780 PTZ HD
Bright illumination even in difficult areas, thanks to radiation-tolerant inspection camera
- Reliable image results in high quality thanks to Full HD resolution
- Professional inspections possible from a long distance due to the 30x optical zoom
- Particularly bright illumination of tanks, pipes or other objects due to the integrated LED illumination
- Reference measurements directly in the image by integrated double lens laser (optional)
Product overview
Are you looking for the right equipment to inspect hard-to-reach places in nuclear or industrial environments? With the help of our waterproof full HD inspection camera, you are able to optimally illuminate even dark environments such as tanks or pipes. Thanks to built-in LED lighting, the camera provides you with the best possible results.
Key features
- Robust construction made of anodised aluminium
- PAN & TILT with snap-in coupling
- Radiation tolerant
- Zoom lens 30x optical / 12x digital
- 1080i/60 fps Full HD resolution
- Integrated LED lighting
- Waterproof up to 50 m
- Optionally with 2 line lasers
Documents
Areas of application
Tank inspections in the oil and gas, chemical and petrochemical industries
All visual inspections and surveillance in hazardous areas
Industrial applications
