| Housing | anodized aluminum |
| Image sensor / number of effective pixels | Vidicon pic-up tube 2/3“ |
| Horizontal resolution | > 460 TV lines |
| Signal system | PAL (without bust, monochrom) |
| Light sensitivity | 5 Lux |
| Optical zoom | 10x |
| Digital zoom | n/a |
| Focus | manual (motorized) |
| FOV | --- |
| Minimum object distance | 50 mm (depending on system configuration) |
| Video output | VBS |
| Range - PAN | infinite |
| Range - TILT | 300° (± 150°) |
| Lighting | 4x LED spots |
| Luminous flux | ~ 6,000 lm |
| Dimension (LxWxø) | 302x131x149 mm |
| Weight | --- kg |
| Operating temperature | --- |
| Water tight / water depth | 5 bar / 50 m |
| Radiation tolerant | 500,000 rad/h (5,000 Gy/h) |
| Total dose | 110 Mrad (1.1 MGy) |
| Optionals | --- |
| Features | integrated slipping clutch for pan & tilt |
Inspection cameras

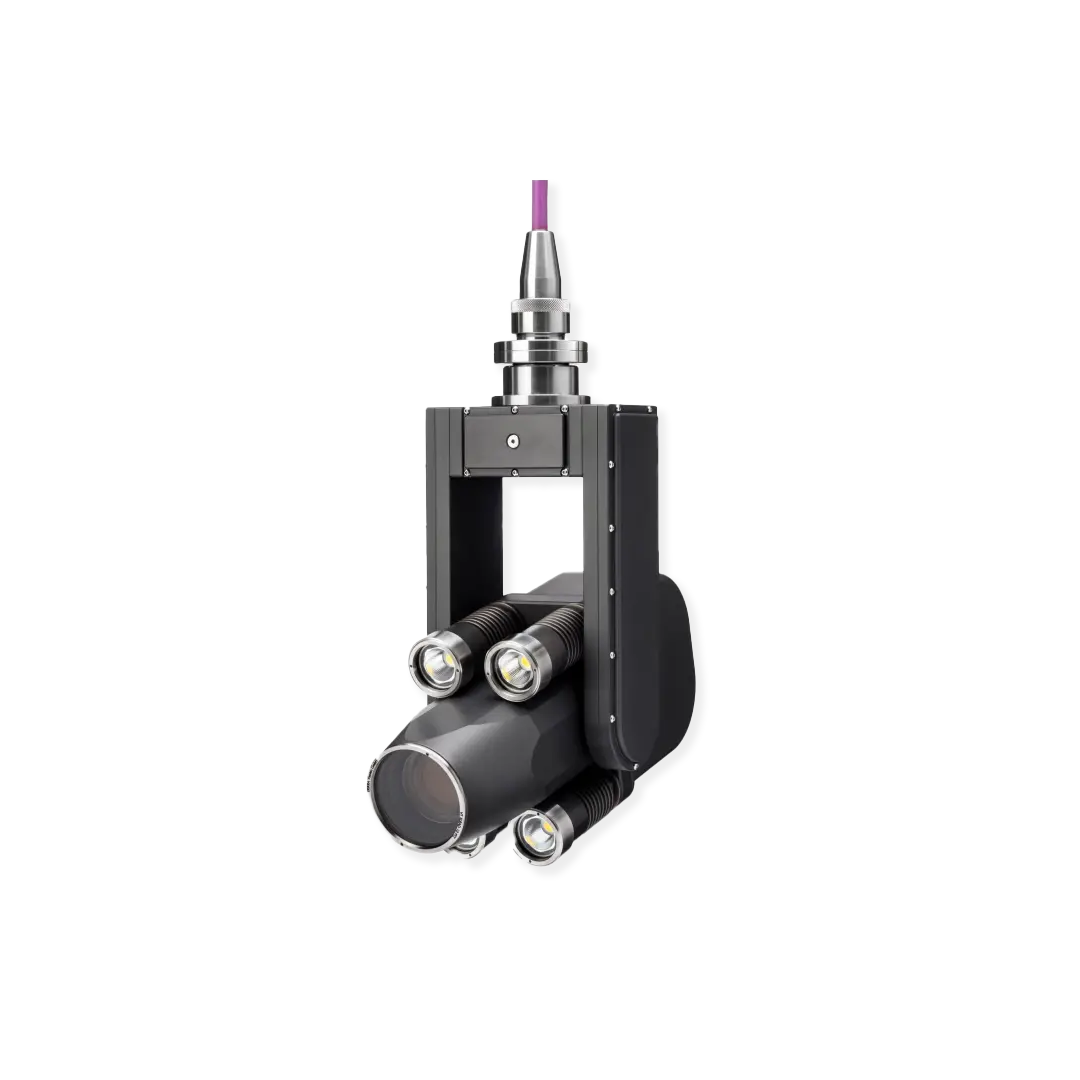

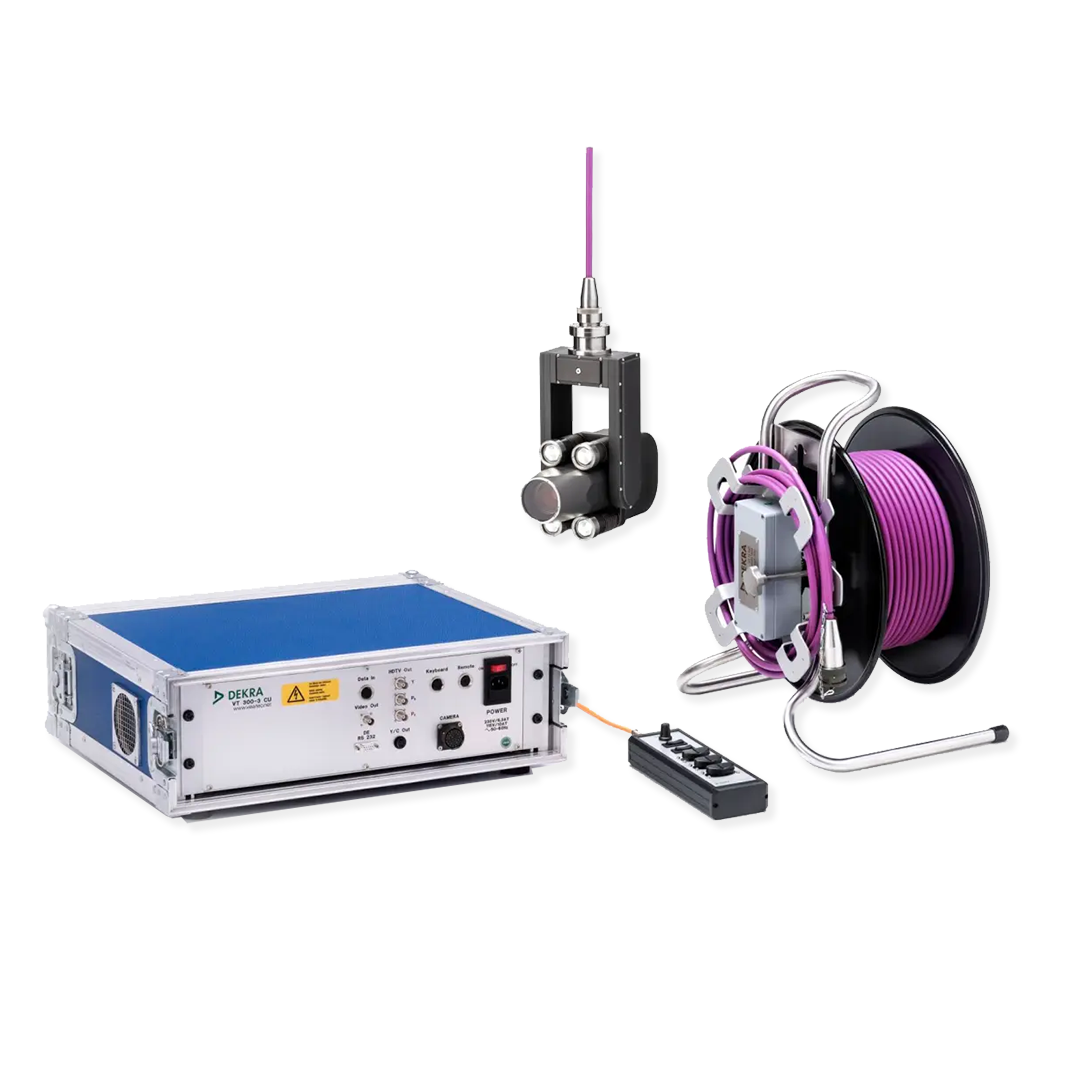

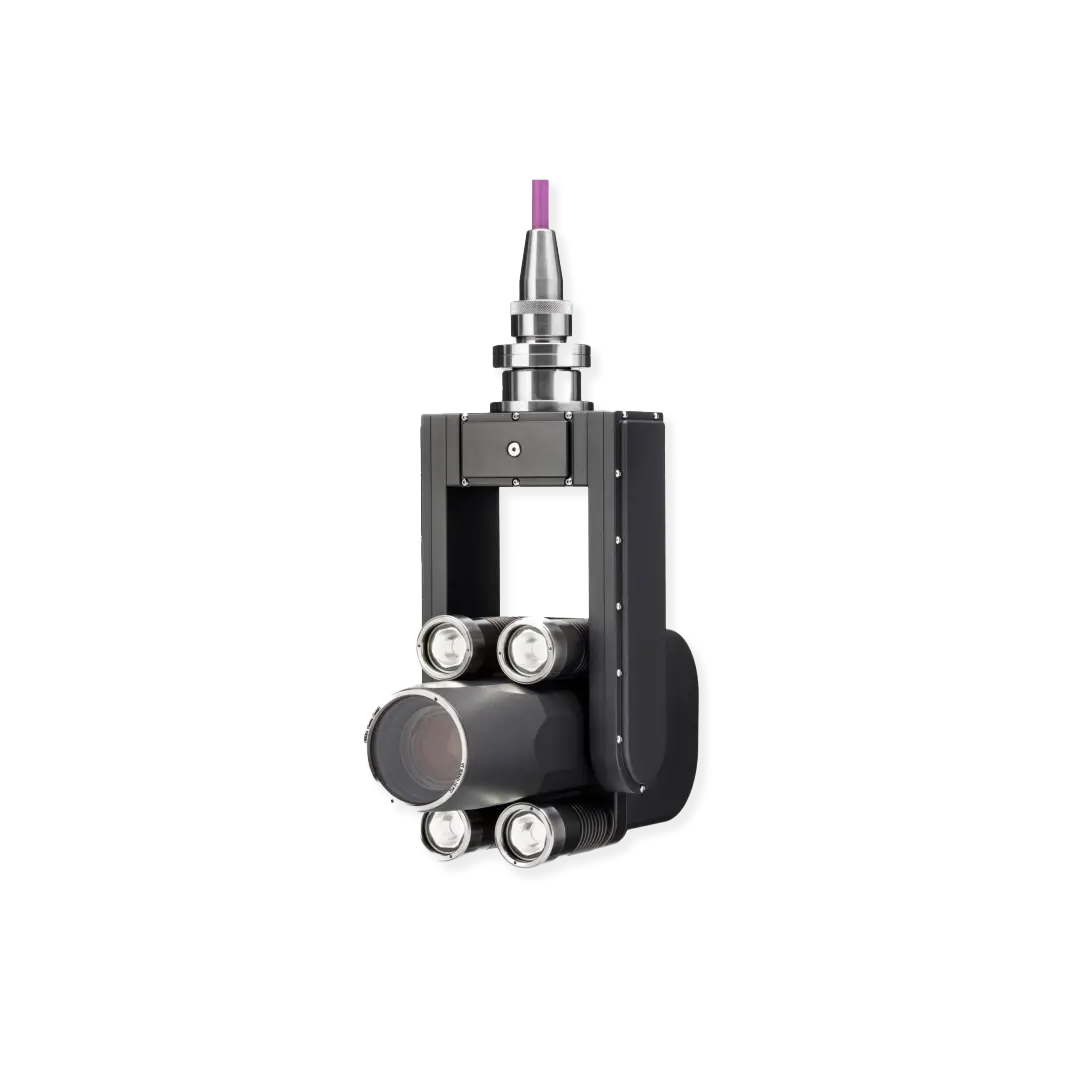

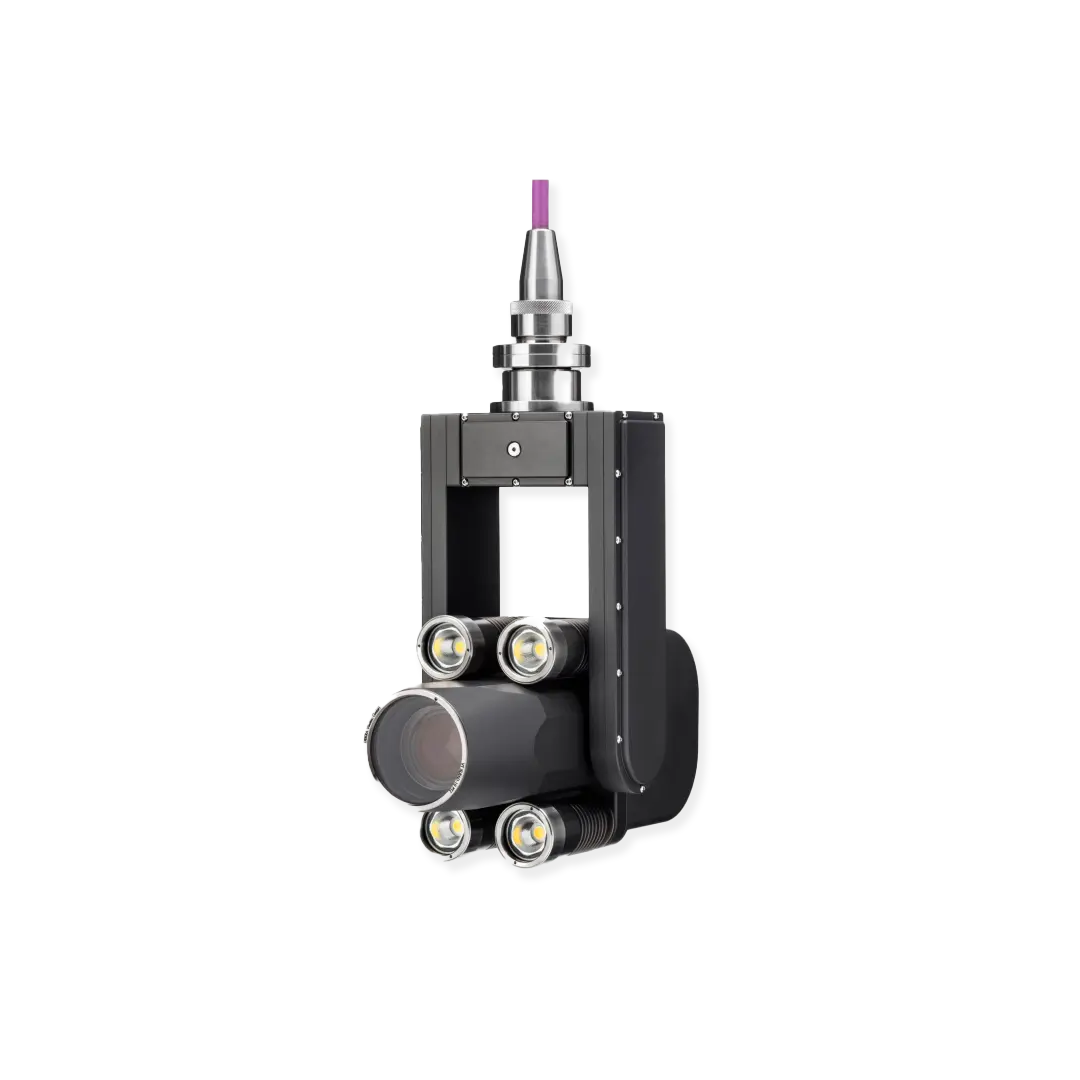

VT RAD-10 PTZC
Optimum visibility in nuclear areas of operation, thanks to highly radiation-resistant pan-tilt inspection camera
- Versatile due to their compact design
- Highest quality and reliability due to the high resolution with 10x optical zoom and pan/tilt function
- Optimum illumination of tanks, pipes or other objects through integrated LED lighting
- Suitable for use in the nuclear sector or under water thanks to waterproof housing and radiation-resistant electronics
Product overview
For inspection in nuclear environments, you need the right equipment, especially for dark or hard-to-reach areas. Our highly radiation-resistant inspection camera with pan-tilt function is the ideal choice. With its non-browning 10x zoom lens and integrated LED illumination, you get the best results.
Key features
- Robust construction made of anodised aluminium
- PAN & TILT with snap-in coupling
- High radiation resistance
- Zoom lens 10x optical
- PAL signalling system Integrated
- LED lighting Waterproof up to 50 m
Documents
Areas of application
Nuclear applications - e.g. reactor inspection
Decommissioning applications - e.g. pipe and tank inspections, reactor inspection/hot cells
All underwater inspections and monitoring applications in hard-to-reach areas
