| Material | Stainless steel |
| Dimensions (LxBxD) | 429x201x75 mm |
| Weight | 10.85 kg |
| Waterproof / Water depth | 5 bar / 50 m |
| Lighting | 8x LED |
| Luminous flux | 95.000 lm |
| Automatic overheating protection | - Step 1 above 80°C = 22,000 lm - Step 2 above 90°C = 12,000 lm |
| Colour temperature | 5.700 K |
| Light cone | 36° |
| Operating temperature water | --- |
| Operating temperature air | --- |
| Radiation tolerance | 192,500 rad/h (1,925 Gy/h) |
| Total dose | 4,810,000 rad (48,100 Gy) |
| Accessories | Non-Browning Glass |
Underwater Lighting

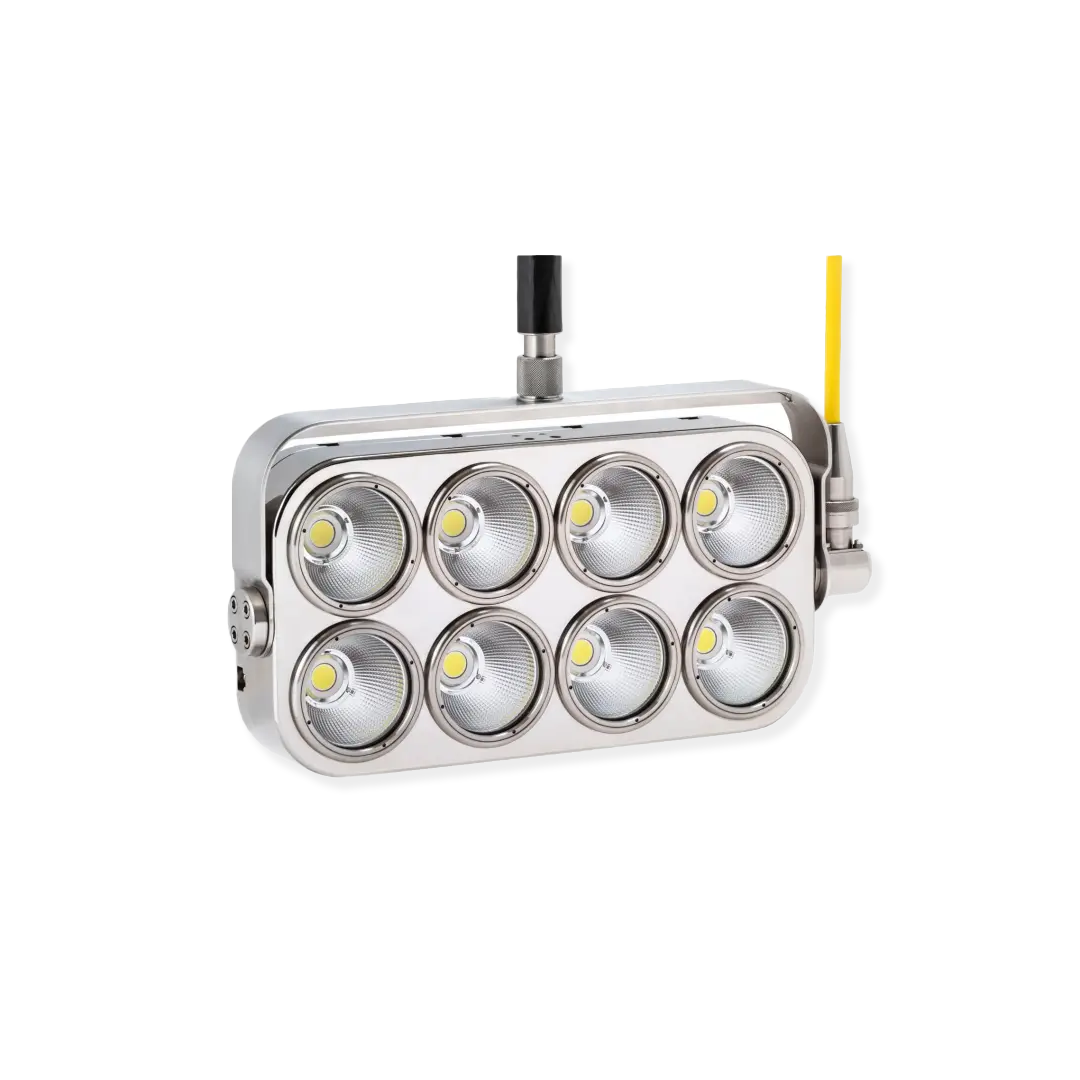

VT 800 PL LED underwater lighting
Durable and radiation-resistant pool lighting for all underwater applications
- High-quality and particularly reliable underwater lighting thanks to the high luminosity of the 8 integrated LED lamps
- Optimum illumination of reactor basins, storage basins, tanks or other objects due to continuously dimmable LED lamps
- Flexible use thanks to robust stainless steel housing and water resistance up to a depth of 50 metres
- Due to the internal temperature control, it can also be used outdoors with automatically controlled lighting intensity
Product overview
Are you looking for waterproof and powerful lighting for use in nuclear or industrial environments? Our durable and radiation-resistant LED underwater lighting offers the optimal solution: The VT 800 PL LED provides optimal illumination and perfect visibility without waiting times as with gas pressure lamps and can be used both as a fixed installation or for manual handling.
Key features
- High illuminance with an output of 95,000 lm
- Waterproof up to 50 m
- Overheating protection
- LED light infinitely dimmable
- High radiation resistance due to optional non-browning glass
- Various frames and brackets, depending on customer requirements
- The FME-approved design guarantees no loose parts in the water basin
Documents
Areas of application
Illumination underwater and in the air where optimal visibility is required
All types of prolonged lighting tasks in reactor vessels or fuel pools
Industrial applications, such as illumination of storage basins, tanks or other objects
Outdoors
