| Housing | robust ABS |
| Dimensions | 174x83x225 mm |
| Weight | 1.2 kg |
| Video output | Y/C out, CVBS |

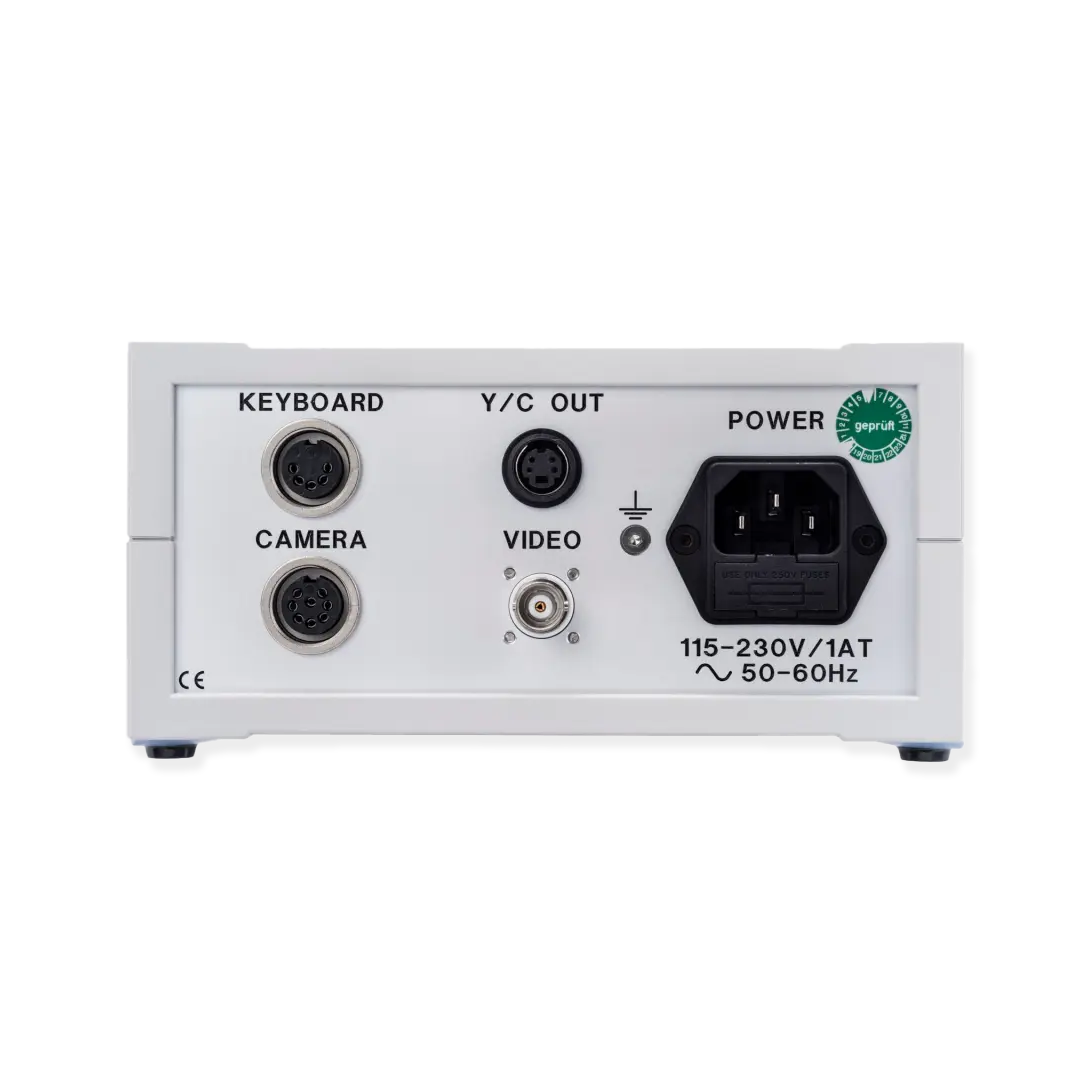

| Connections | Camera, keyboard, video |
| Power consumption | 30 W |
| Input voltage | 85-264 V AC / 47-440 Hz |
| Operating temperature | --- |
| Recording | n/a |
| Monitor | n/a |
| Resolution | --- |
| Brightness | --- |
| Contrast | --- |
| Response time | --- |
| Accessories | Monitor, keyboard |
| Features | --- |
Control Units

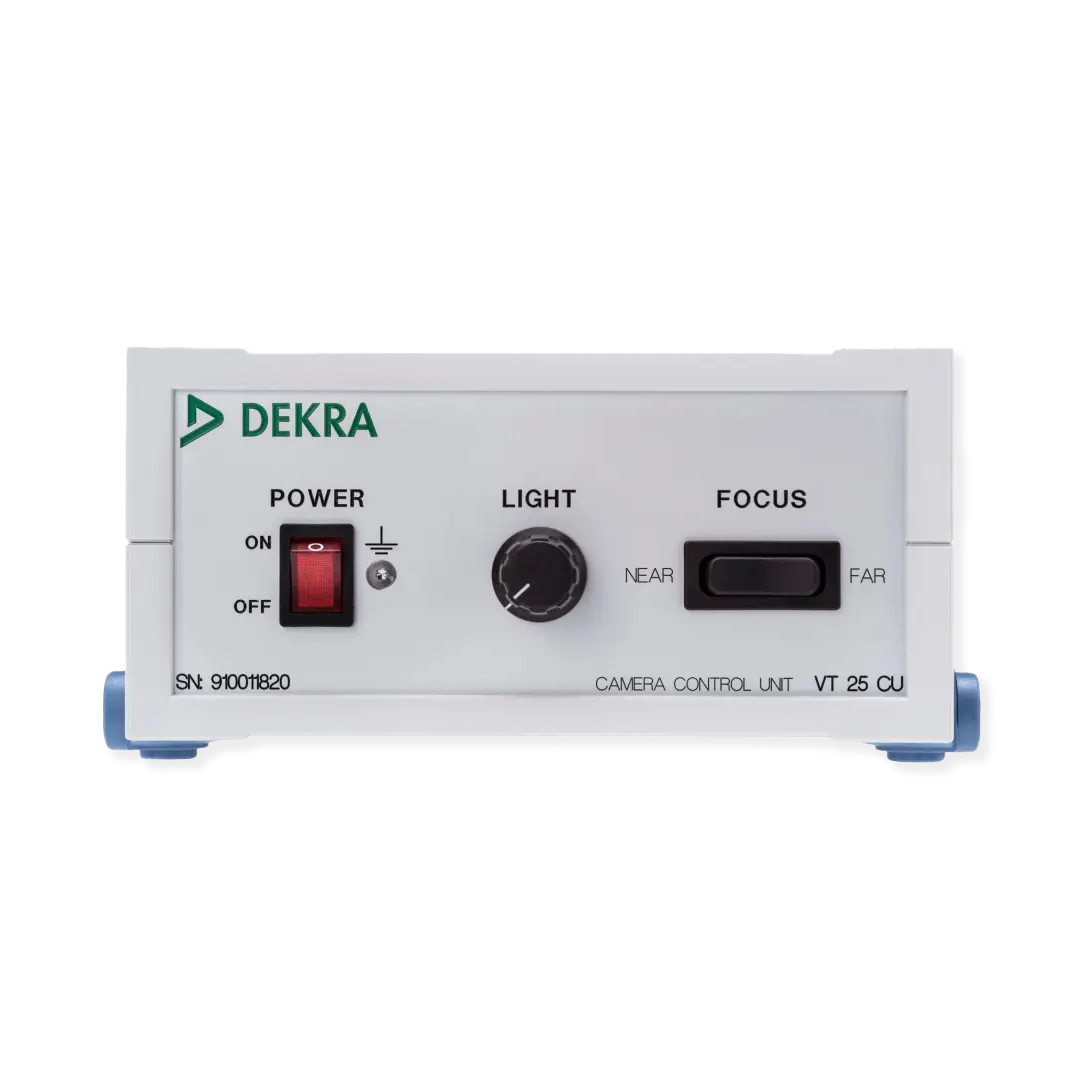

VT 25 CU control unit
The VT 25 CU is a compact and cost-effective control unit for the VT 25 FL camera series
- Inexpensive
- Optionally available remote control
Product overview
You need the right equipment to inspect in nuclear or industrial environments, including hard-to-reach places? Our powerful control unit offers the optimal solution: Thanks to its resistant housing and robust electronics, the control unit is suitable for long-term operation and can be easily transported thanks to its portable design.
Key features
- Operation of the camera functions directly on the control unit
- Integrated data insertion optional
- Easy handling
- Small size and compact dimensions
- Additional devices such as monitor and recorder can be connected to the video outputs of the control unit
Documents
Areas of application
Control of the VT 25 FL camera series
Inspections with limited space
