| Housing | 19" Standard Rack 3U |
| Dimensions | 55.1x48x19.4 cm |
| Weight | 15.4 kg |
| Video output | Y/Pb/Pr / CVBS / Y/C out |
| Connections | Data (RS 232), remote control, keyboard, Data In, camera |
| Power consumption | 650 W |
| Input voltage | 90-264 V AC / 47-63 Hz |
| Operating temperature | --- |
| Recording | n/a |
| Monitor | n/a |
| Resolution | --- |
| Brightness | --- |
| Contrast | --- |
| Response time | --- |
| Accessories | Monitor, keyboard |
| Features | --- |
Control Units

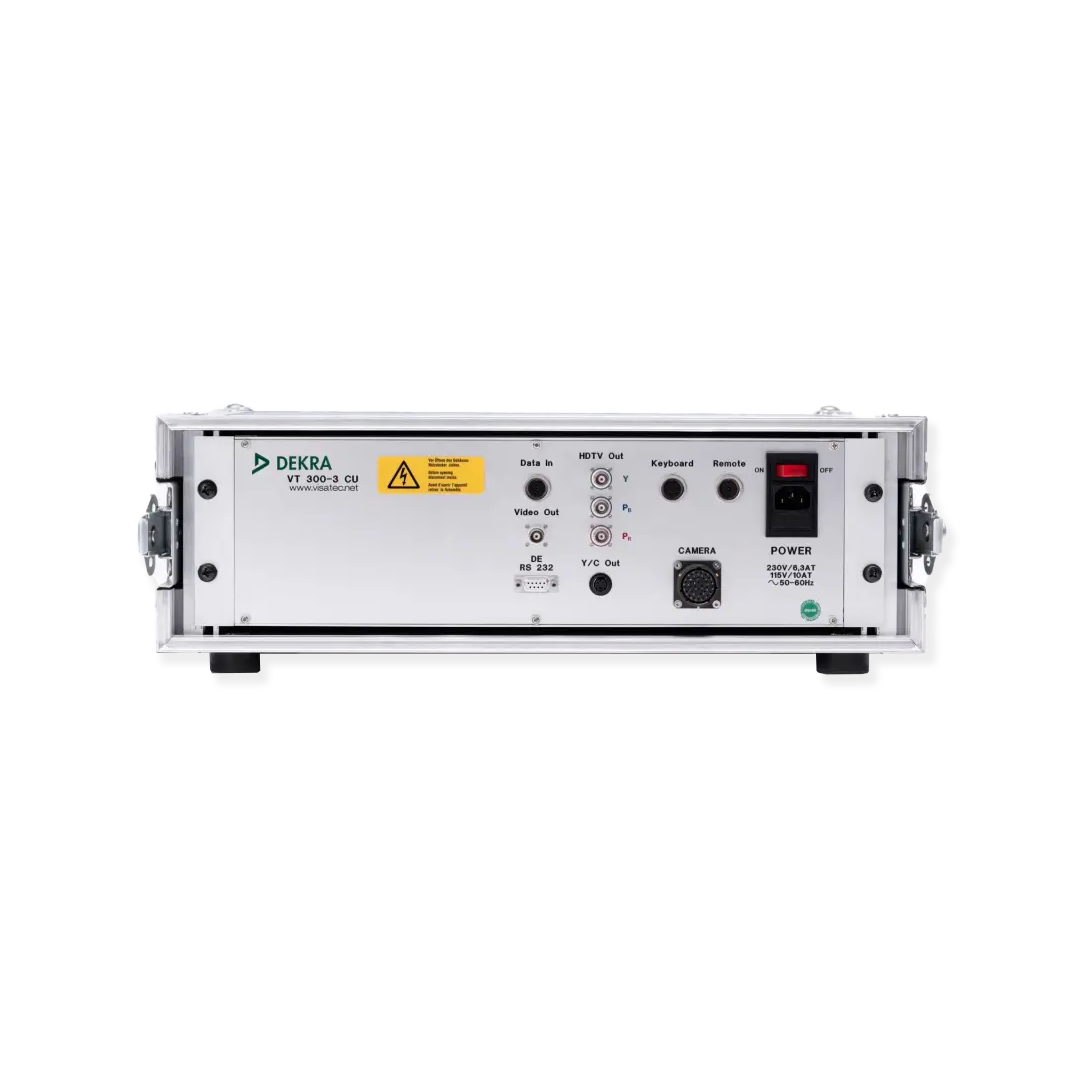

VT 300-3 CU control unit
The VT 300-3 CU is a powerful 19-inch rack-mountable, portable control unit for all Dekra Visatec camera systems
- 19-inch format, suitable for all industry standard cabinets
Product overview
You need the right equipment to inspect in nuclear or industrial environments, including hard-to-reach places? Our powerful control unit offers the optimal solution: Thanks to its resistant housing and robust electronics, the control unit is suitable for long-term operation and can be easily transported thanks to its portable design.
Key features
- 19-inch format, also suitable for all industrial cabinets
- The control unit is well protected in the case or easy to transport with the hand strap
- Additional devices such as monitor and recorder can be connected to the video outputs of the control unit
Documents
Areas of application
Perfectly suited for controlling DEKRA Visatec inspection cameras and inspection systems
Camera and crawler functions are controlled via the corresponding remote control
