| Housing | Peli Storm Case |
| Dimensions | 50x40x19.5 cm |
| Weight | 10 kg |
| Video output | HDMI |
| Connections | Camera |
| Power consumption | 158.4 W |
| Input voltage | 85-264 V AC / 47-63 Hz |
| Operating temperature | --- |
| Recording | blackmagic video assist 5" 3G |
| Monitor | 15" |
| Resolution | 1024x768 |
| Brightness | 300 cd/m2 |
| Contrast | 20,000,000:1 (DCR) |
| Response time | 5 ms |
| Accessories | --- |
| Features | --- |
Control Units
VT 334 FWSD CU control unit
The VT 334 FWSD CU is a portable, powerful control unit with integrated recorder and monitor for operating the VT 34 MFW magnetic crawler
- IP67 classification (with closed lid)
- Integrated monitor for self-sufficient work
- Data insertion device
Product overview
You need the right equipment to inspect in nuclear or industrial environments, including hard-to-reach places? Our powerful control unit offers the optimal solution: Thanks to its resistant housing and robust electronics, the control unit is suitable for long-term operation and can be easily transported thanks to its portable design.
Key features
- Additional external devices can be connected to the HDMI video output of the control unit
- High-quality SD card video recorder
- The control unit is well protected in the robust "Peli Storm" case
- Optional video overlay text inserter for the documentation
Documents
Areas of application
Perfectly suited for the operation of the VT 34/36 PT V02 camera series and the VT 34 MFW driving trailer

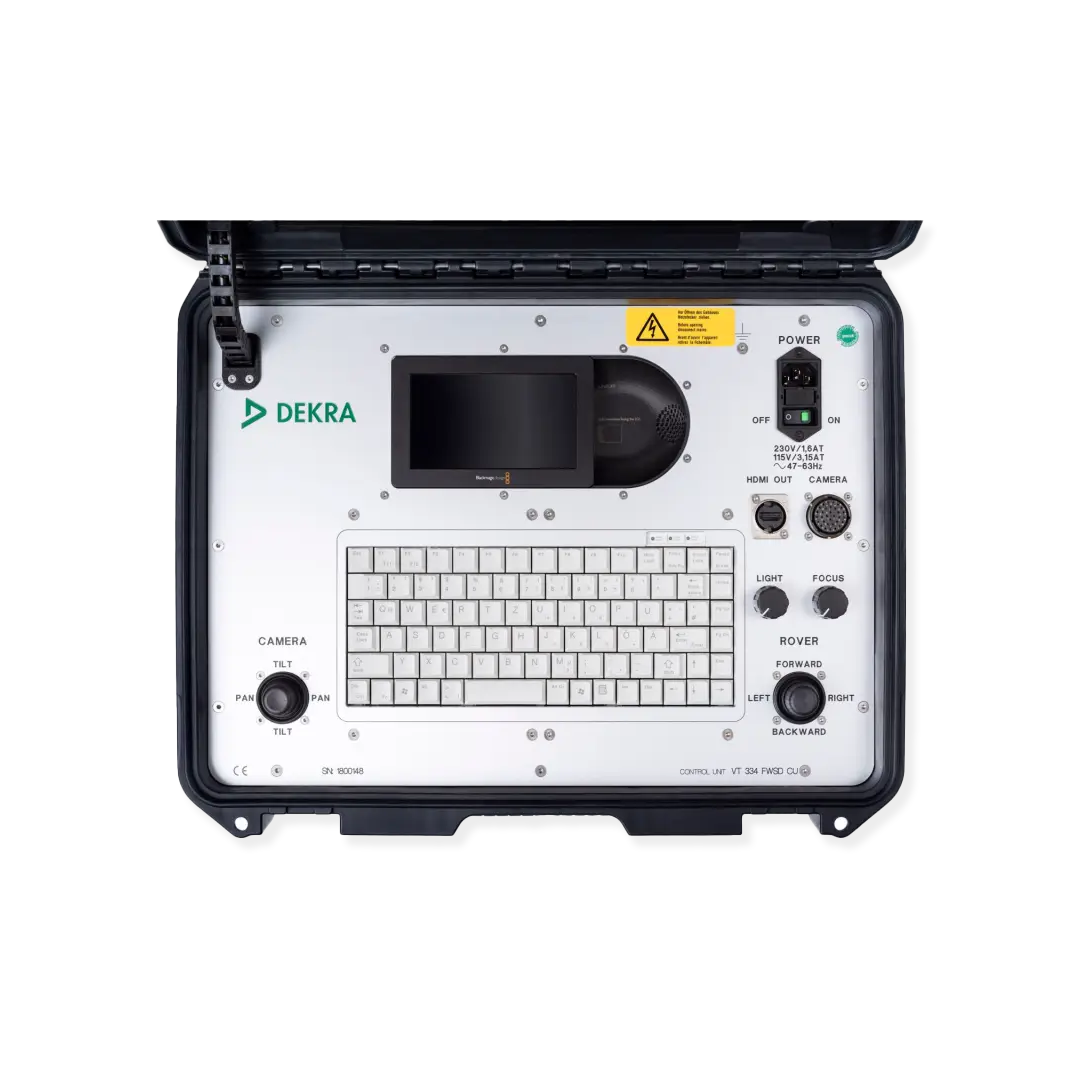

Camera, trolley and video recording functions are controlled via the control panel on the control unit

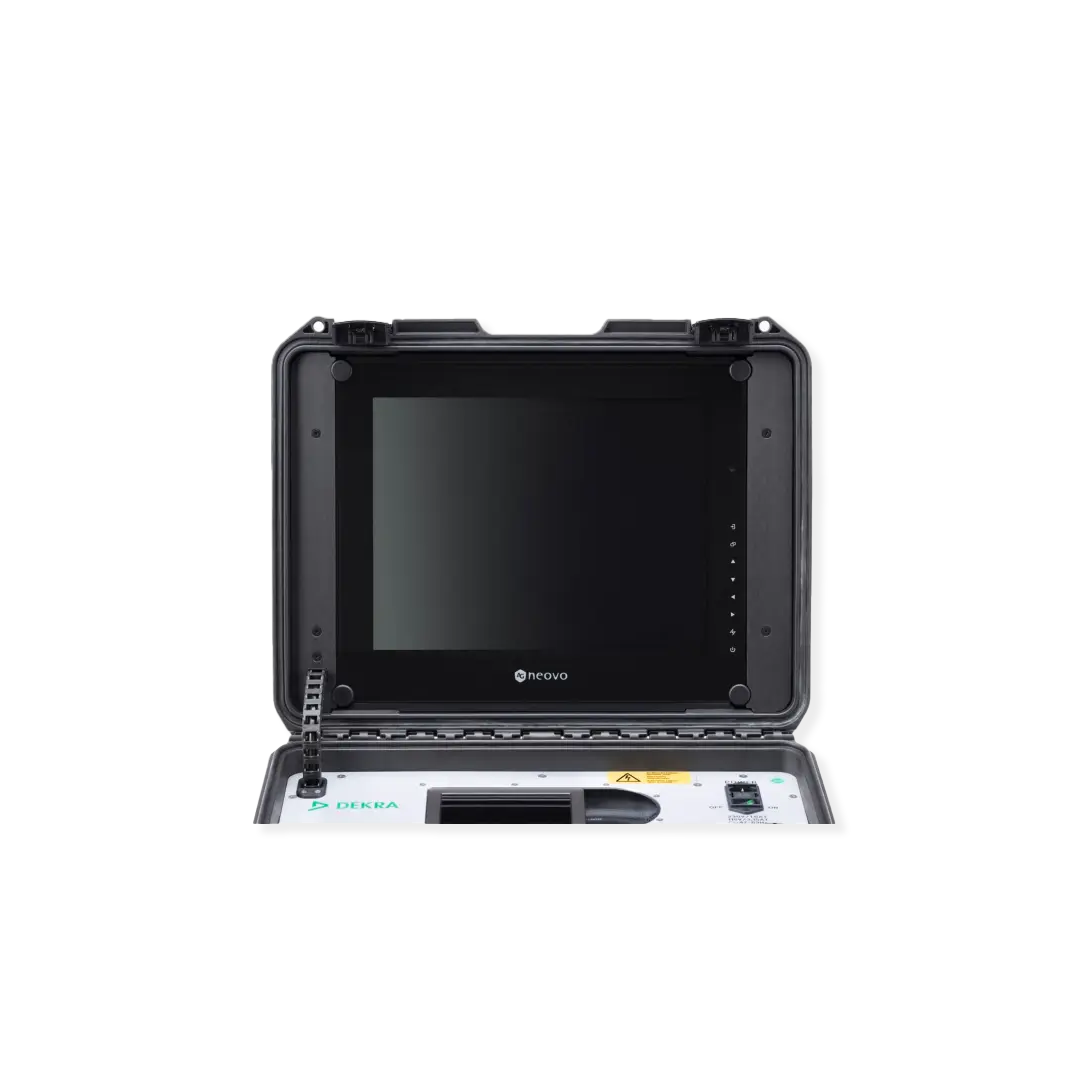

The integrated high-resolution monitor displays the camera image
