| Housing | Peli Storm Case |
| Dimensions | 62.4x49.8x29.5 cm |
| Weight | 23.5 kg |
| Video output | SDI/HDMI |
| Connections | Data In / Microphone / Camera |
| Power consumption | 650 W |
| Input voltage | 90-264 V AC / 47-63 Hz |
| Operating temperature | --- |
| Recording | blackmagic video assist 5" 3G |
| Monitor | 21.5" |
| Resolution | full HD |
| Brightness | 250 cd/m2 |
| Contrast | 1,000:1 |
| Response time | 5 ms |
| Accessories | --- |
| Features | --- |
Control Units
VT 6360 CU full-HD control unit
The VT 6360 CU is a portable, powerful control unit with integrated recorder and 21.5" FULL-HD monitor for operating inspection cameras

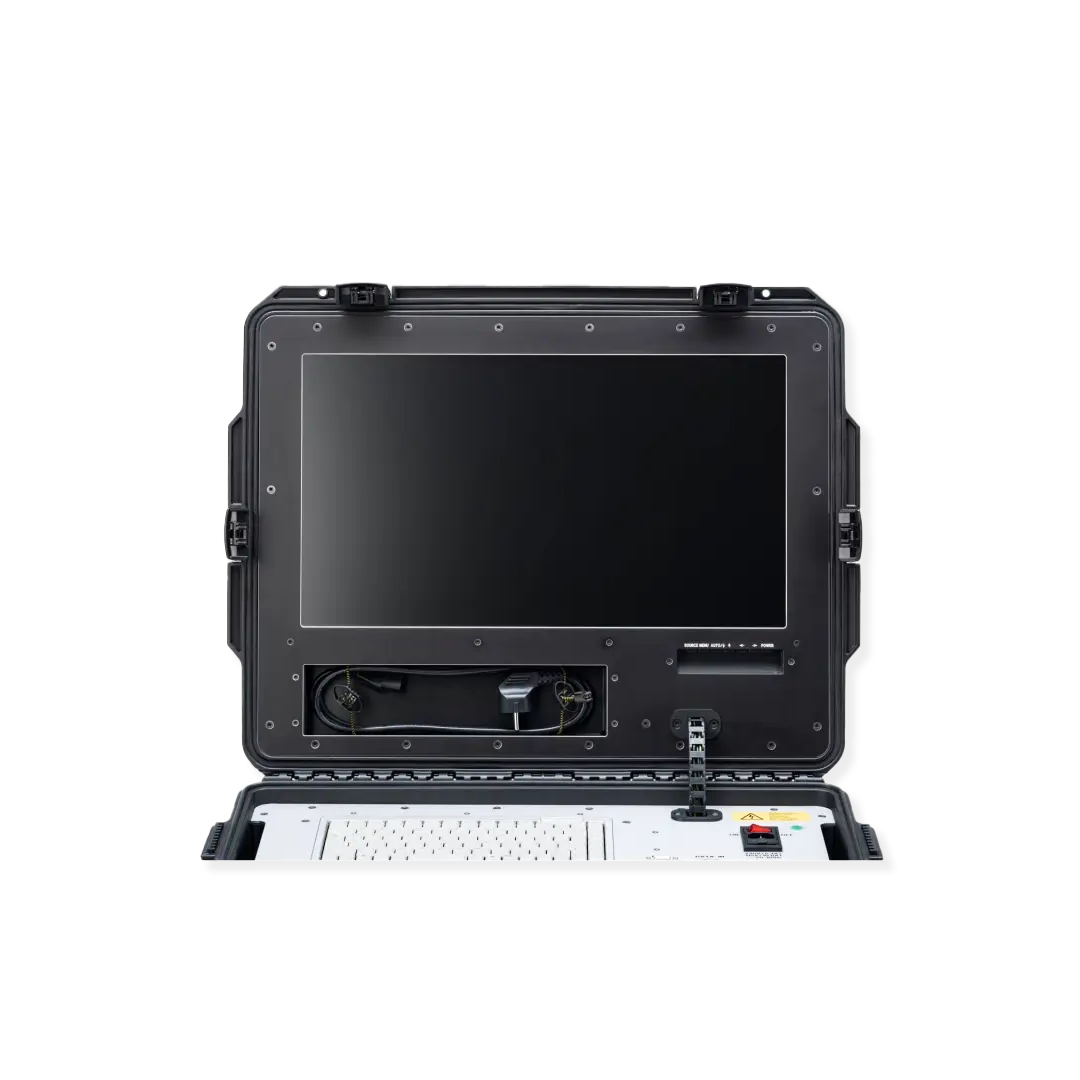

- 21.5-inch Full HD monitor for highest picture quality
- Integrated SD hard disk recorder with touch operation and audio recording
- Integrated data insertion device
- IP67 with closed cover
Product overview
You need the right equipment to inspect in nuclear or industrial environments, including hard-to-reach places? Our powerful control unit offers the optimal solution: Thanks to its resistant housing and robust electronics, the control unit is suitable for long-term operation and can be easily transported thanks to its portable design.
Key features
- The control unit is available with various removable remote controls
- Connection of a trolley, manipulator or camera possible
- Additional devices such as monitor and recorder can be connected to the video outputs of the control unit
- The control unit is well protected in the very robust "Peli Storm" transport case - easy handling and convenient transport
- Input of external incremental and encoder values for display in the video image
- Microphone for recording sound on the video
Documents
Areas of application
Multifunctional control unit for cameras and manipulators from our product line
