VT CamCtrl CU control unit

The compact VT CamCtrl control unit is designed for use in the control cabinet and enables the control of a Visatec camera.

The system offers the possibility to operate several cameras by connecting several VT CamCtrl.

You need the right equipment to inspect in nuclear or industrial environments, including hard-to-reach places? Our powerful control unit offers the optimal solution: Thanks to its resistant housing and robust electronics, the control unit is suitable for long-term operation and can be easily transported thanks to its portable design.

Product overview
Technical specifications
Documents
Areas of application
Related products

Dekra Visatec Vt Camctrl Iso Ansicht 0019 Web

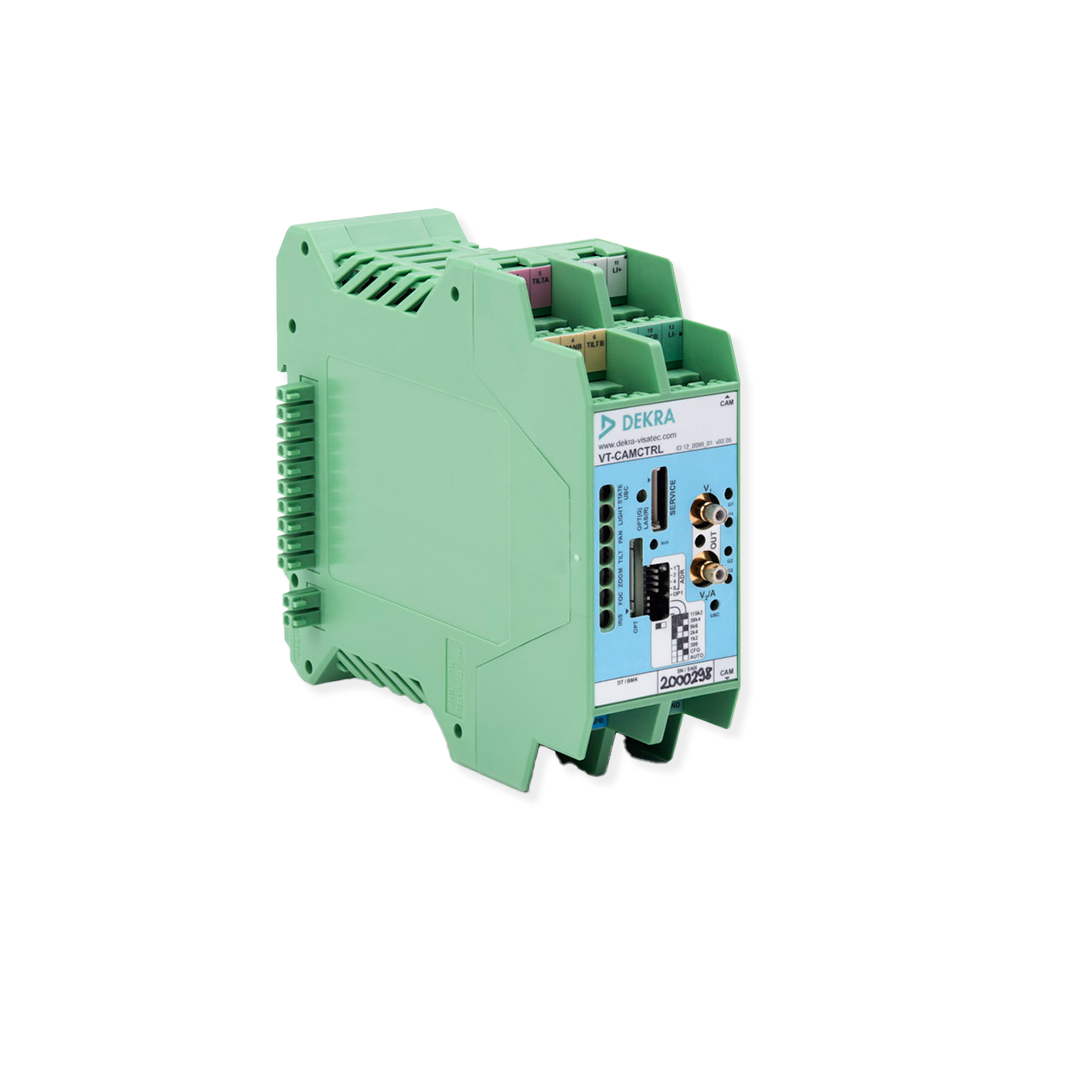

Dekra Visatec Vt Camctrl Iso Ansicht 0016 Web

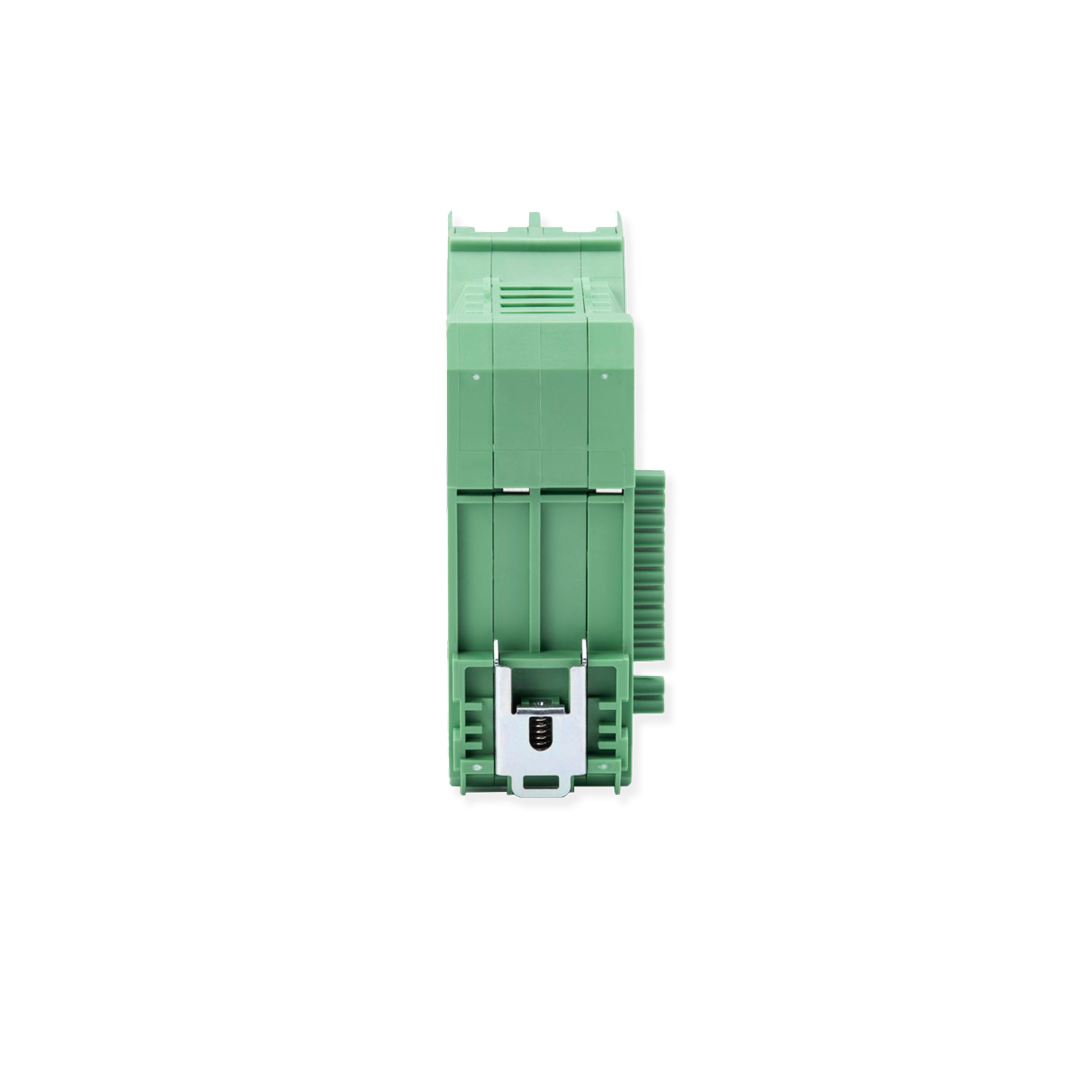

Dekra Visatec Vt Camctrl Rueckseite 0012 Web

Product overview

Small, compact design
Mounting on 35mm top-hat rail in the control cabinet
Bayable system (up to 10 modules)
Control of many Visatec cameras possible

Key features

Operating the camera functions
Small and compact dimensions
Modular structure
DIN rail 35 mm compatible

Housing	robust polyethylene
Dimensions	50x110x110 mm
Weight	0.28 kg
Video output	Coax or twisted pair (balanced)
Connections	Screw terminals
Power consumption	48 W
Input voltage	24-33 V DC / with at least 2.5 A
Operating temperature	0-40 °C
Recording	n/a
Monitor	n/a
Resolution	---
Brightness	---
Contrast	---
Response time	---
Accessories	---
Features	---
