| Housing | Stainless steel |
| Image sensor / number of effective pixels | 1/4" Colour CCIQ |
| Horizontal resolution | 400 TVL |
| Signalsysestem | PAL/NTSC |
| Minimum illuminance | 0.1 lx |
| Optical zoom | N/a |
| Digital zoom | N/a |
| Focus | Fixed |
| Viewpoint | --- |
| Minimum object distance | --- |
| Video output | --- |
| Range - PAN | N/a |
| Range - TILT | N/a |
| Lighting | 8x LED |
| Luminous flux | ~38.4 lm |
| Dimensions (ø x L) | 10x37.5 mm |
| Weight | 0.057 kg |
| Operating temperature | --- |
| Waterproof / Water depth | 1 bar / 10 m |
| Radiation tolerance | --- |
| Total dose | --- |
| Accessories (optional) | --- |
| Features | --- |
Inspection cameras

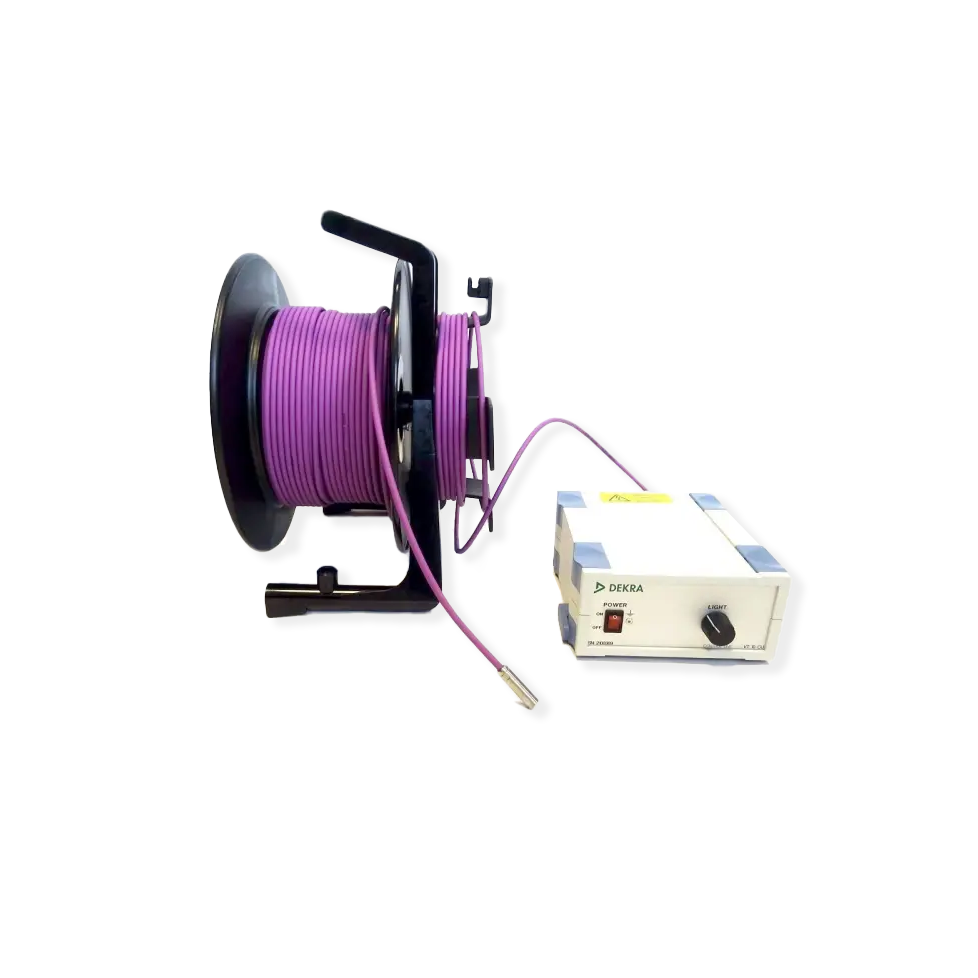

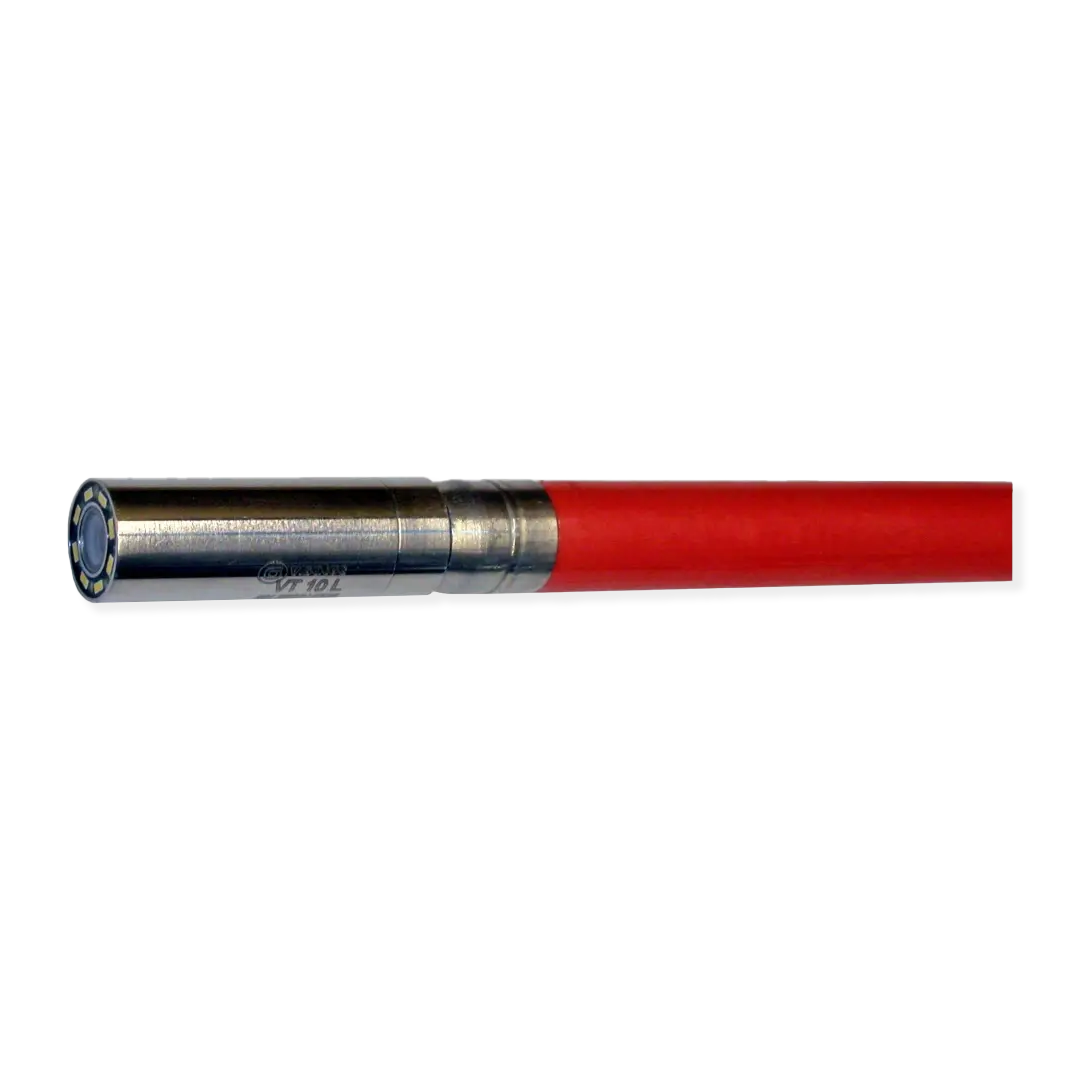

VT 10 L inspection camera
Reliable inspection of even the smallest openings, thanks to 10 mm miniature colour camera
- Incomparable flexibility, due to its small dimensions, making it suitable for use in the smallest openings
- High-quality and particularly reliable results thanks to horizontal resolution with 400 TV lines
- Optimum visibility, even in dark or confined spaces, thanks to integrated LED lighting
- Can also be used in submerged areas due to its pressurised water-tight design
Product overview
Do you need the right equipment for your inspections in the tightest of spaces? Our miniature colour camera features a 10 mm diameter, making it one of the smallest and handiest solutions for underwater inspections, vessel and boiler testing and foreign parts recovery. Thanks to its small dimensions, it is able to give you unparalleled flexibility for the best results.
Key features
- Small and robust design in stainless steel
- Outer diameter of 10 mm
- PAL/NTSC
- Integrated LED lighting
- Waterproof up to 10 m
Documents
Areas of application
Inspection of pipelines and sewers
Application for underwater inspections
Remote controlled manipulators
Recovery of foreign bodies
Investigation in difficult to access areas
Inspections in the industrial sector
Application in nuclear facilities
