| Housing | Stainless steel |
| Dimensions | 627x360x300 mm |
| Weight | 27 kg |
| Speed | --- |
| Operating temperature | --- |
| Waterproof / Water depth | 5 bar / 50 m |
| Lighting | 4x LED spots |
| Light intensity | ~ 14,640 lm |
| Accessories | --- |
| Features | - FullHD or high-wheel inspection camera at the front - Additional lights for better visibility - Rear view camera - Reversing lights Integrated gripper on the underside |
ROV and Crawlers
VT Delfin - Inspection system for nuclear application
Radiation-resistant, extremely manoeuvrable inspection system for visual inspection of reactor pressure vessels (RPV) and RPV internals
- High-quality and particularly reliable submarine thanks to robust housing and easy handling
- Foreign parts recovery through integrated gripper Integrated
- Full HD camera for high-resolution visual inspection
- Optimum illumination of the surroundings thanks to powerful lighting
Product overview

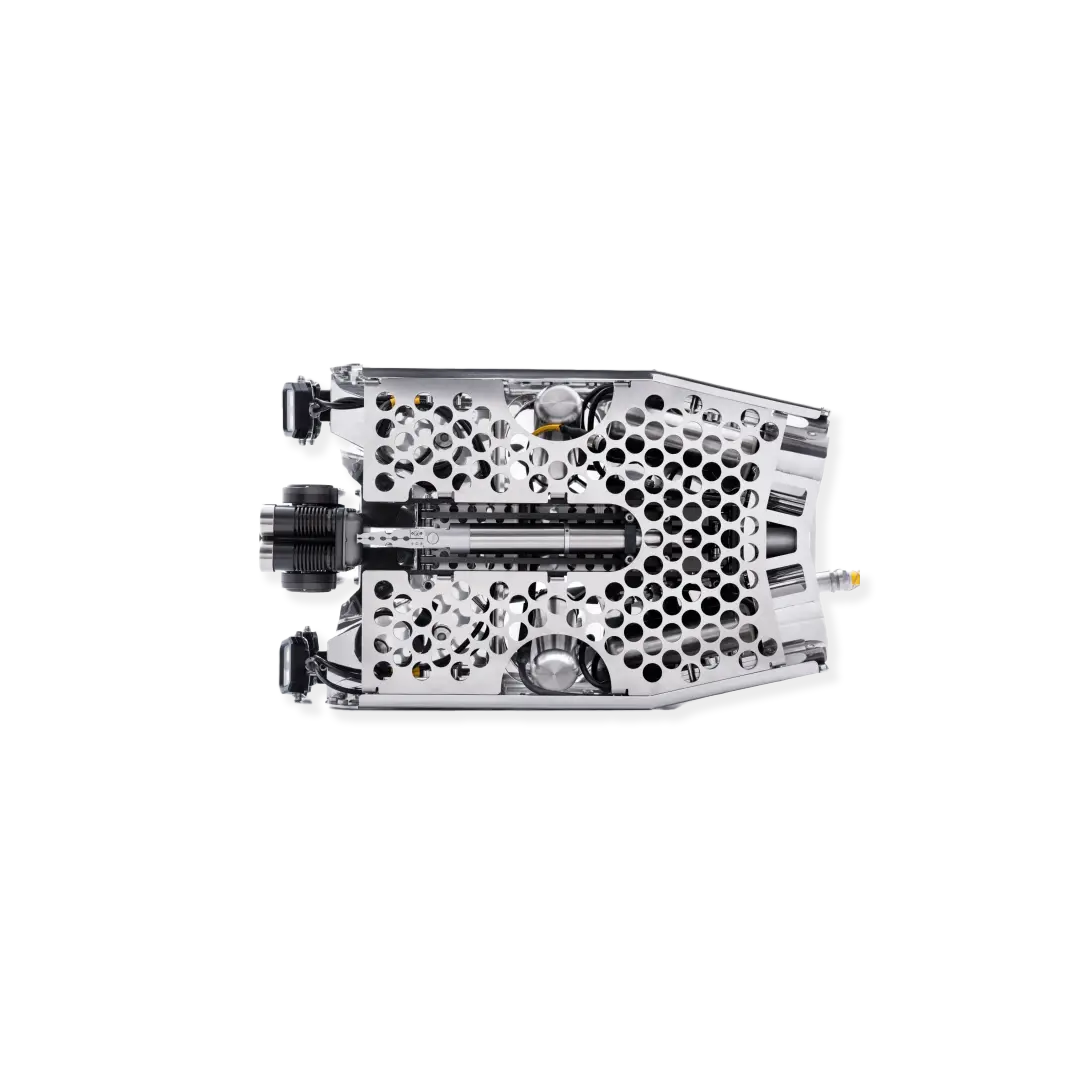

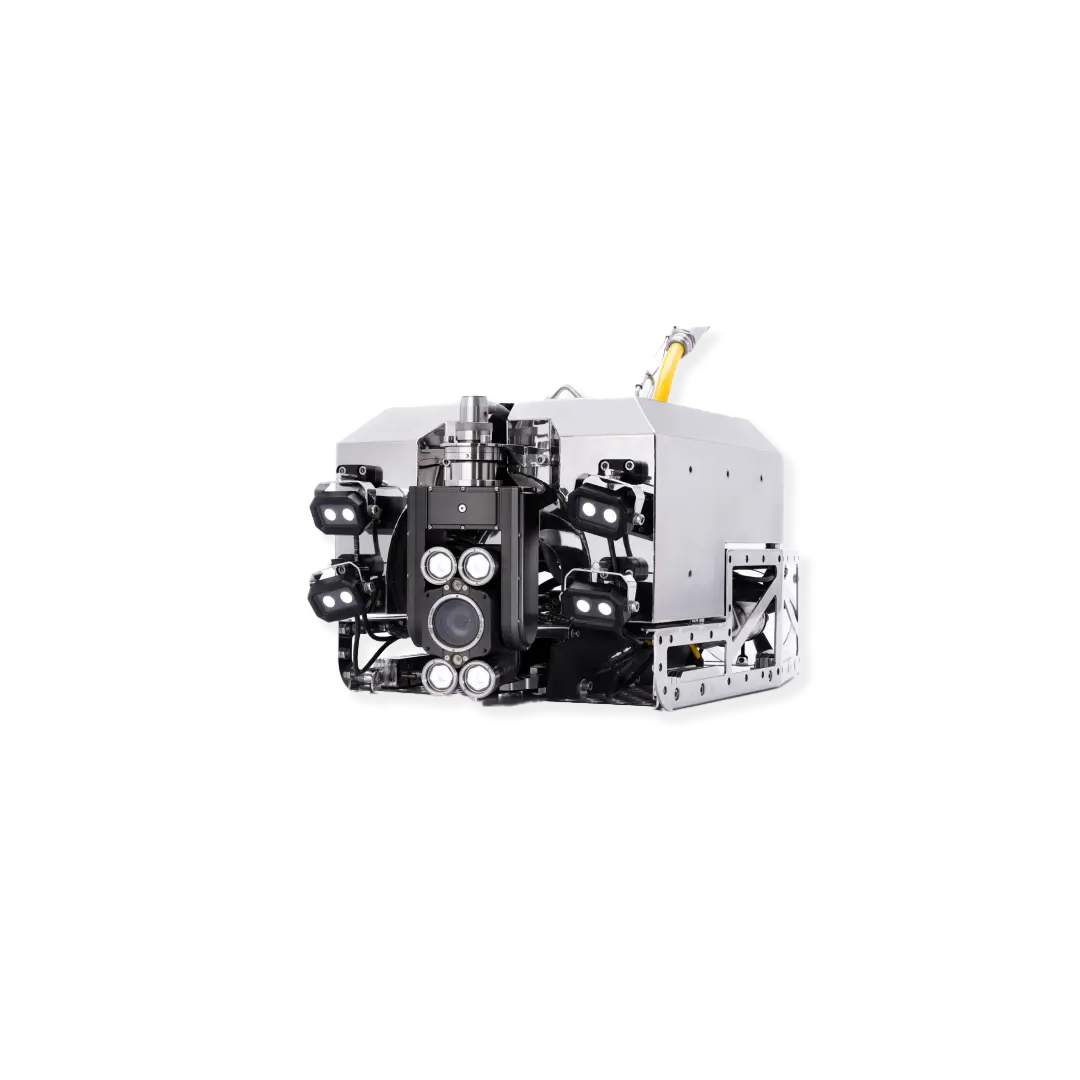

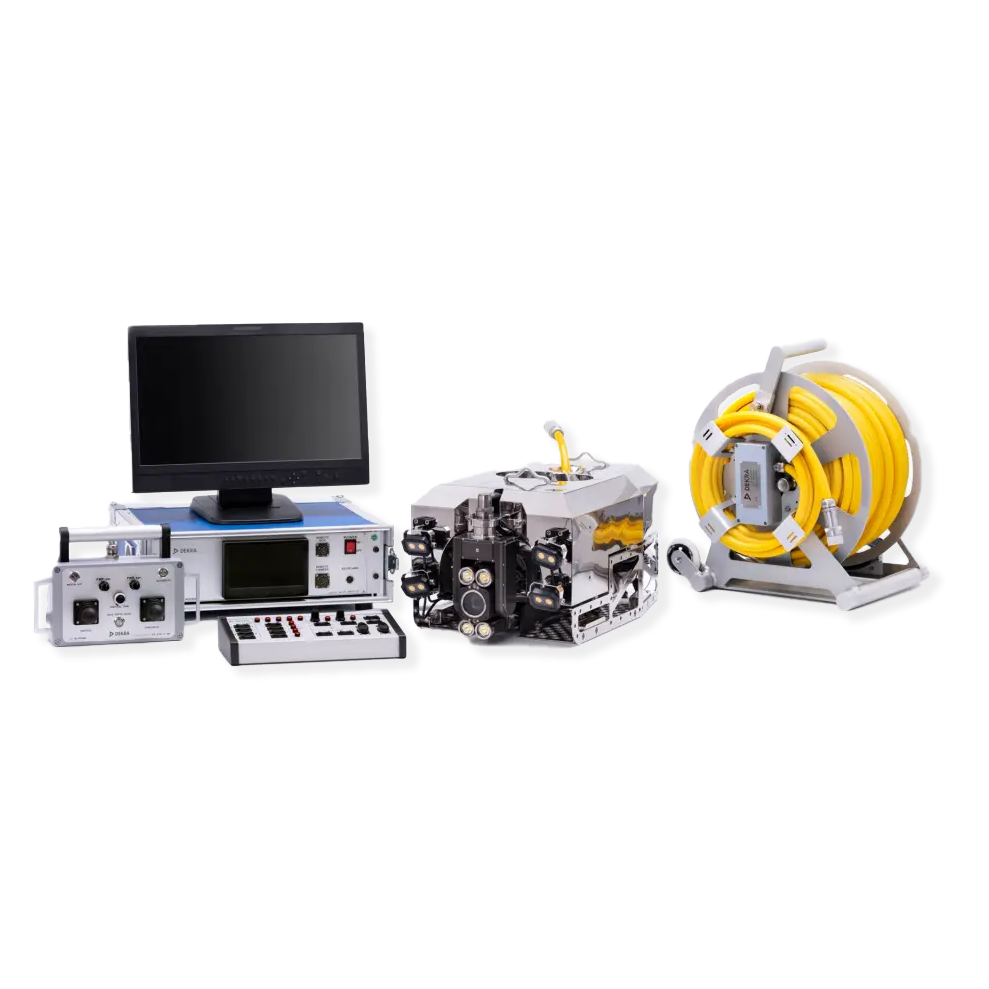

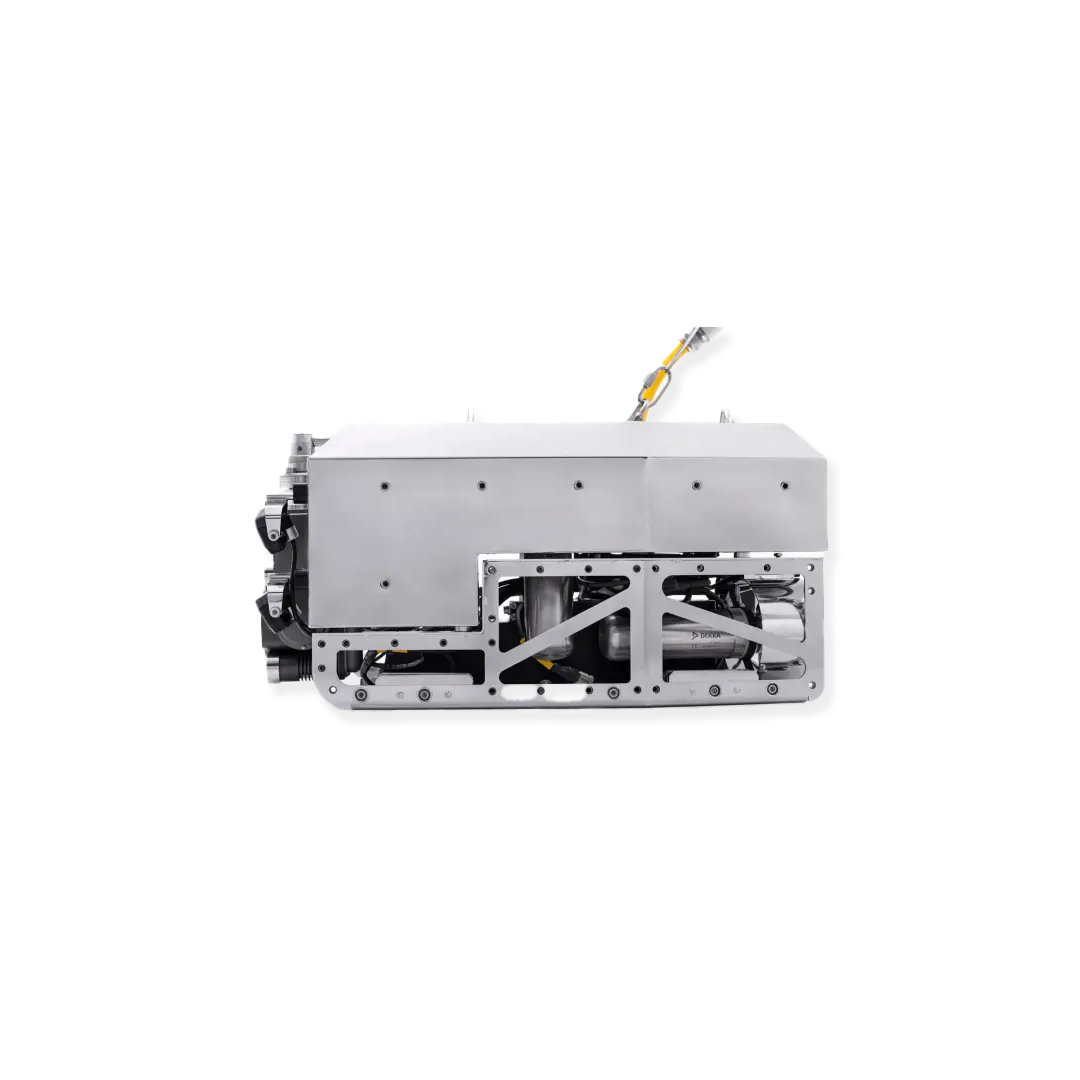

The VT Delfin submarine is equipped with an integrated gripper for the recovery of foreign parts and can be additionally expanded with ultrasonic sensors or an underwater vacuum cleaner.
Do you need the right equipment to examine dark or hard-to-reach places in nuclear or industrial environments? Our waterproof powerful submarine offers the optimal solution: Thanks to a resistant housing and robust electronics, this illumination is suitable for long-term operation and can be used in the smallest of spaces.
Key features
- High manoeuvrability with movements in 3 dimensions Integrated
- Full HD PTZ inspection camera

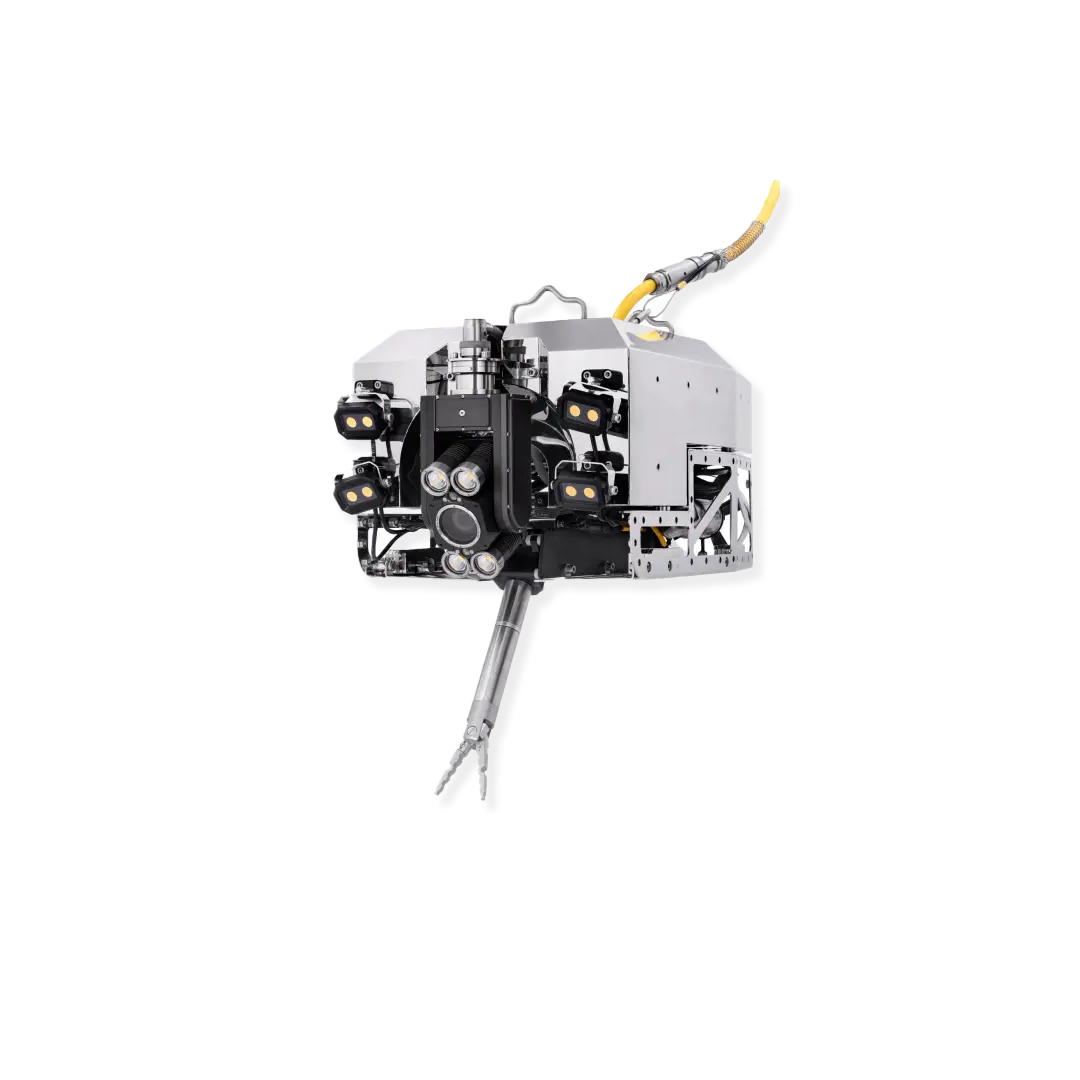

- Integrated extendable and tiltable gripper with 360° rotating head
- Integrated line laser for measurements of cracks etc.

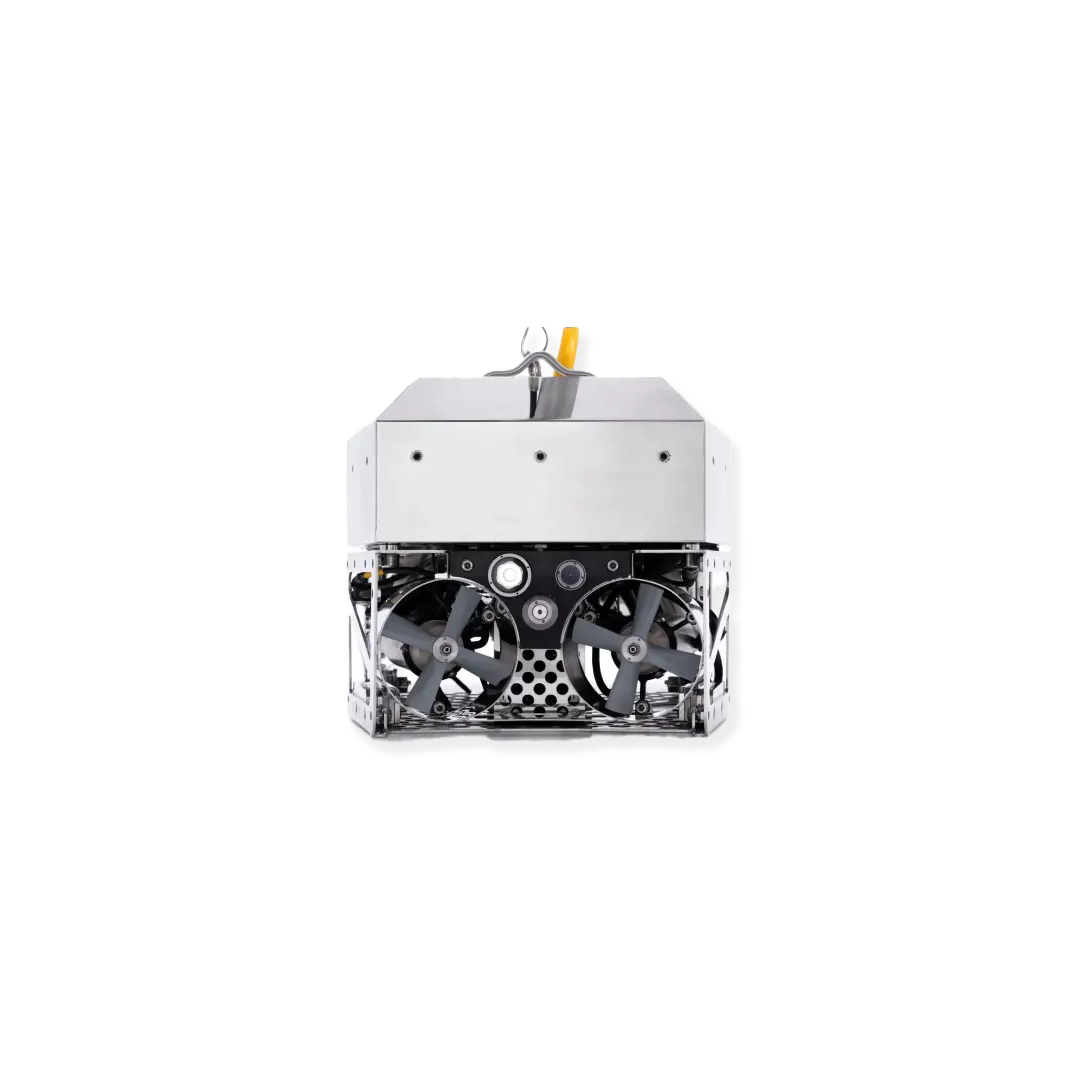

- Rear view camera with lighting
Documents
Areas of application
Reactor pressure vessel (RPV) and internals
Reactor coolant lines (RCL)
Pressure conditioner
Primary side system of the steam generator
All types of FOSAR applications
All types of tank inspections
